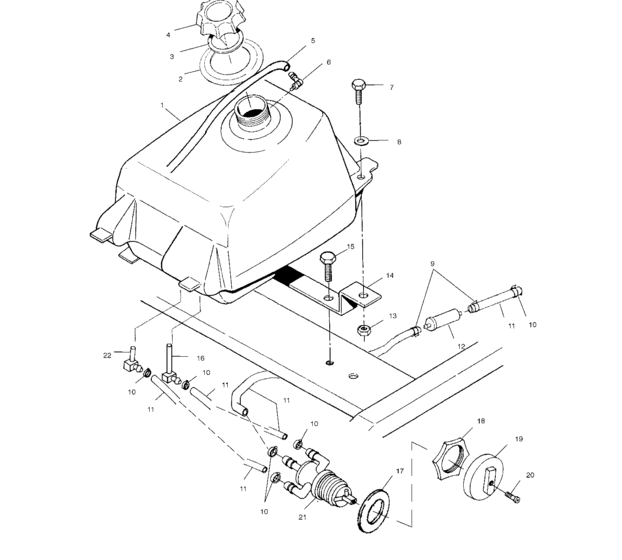

Fuel tank (A02BG38CA) Diagram Polaris SCRAMBLER 400 4X4
- Model code
- A02BG38CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1240082
Asm., fuel tank
Incl. 6,16,22; |
1240082 |
— | ||
|
2
|
2
5410842
Grommet,fueltank
|
5410842 |
— | ||
|
3
|
3
5810144 Gasket-gas cap(10) |
5810144 |
US $2.66 |
||
|
4
|
4
5433687 Cap,gas tank |
5433687 |
US $24.08 |
||
|
5
|
5
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
6
|
6
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
7
|
7
7512310 Screw(10) |
7512310 |
US $0.79 |
||
|
8
|
8
7555734 Washer,flat(10) |
7555734 |
US $0.79 |
||
|
9
|
9
7080534 Clamp,hose |
7080534 |
US $2.45 |
||
|
10
|
10
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
11
|
11
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
12
|
12
2530008 Filter fuel,(10) |
2530008 |
US $5.04 |
||
|
13
|
13
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
14
|
14
5220916-067
Brkt,r,tank mt,blk,
|
5220916-067 |
— | ||
|
15
|
15
7512208 Screw |
7512208 |
US $3.26 |
||
|
16
|
16
7052147
Fitting, fuel outlet, main, 90 degree
|
7052147 |
— | ||
|
17
|
17
5242977
Spacer,fuel valve
|
5242977 |
— | ||
|
18
|
18
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
19
|
19
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
20
|
20
7517505 Screw(10) |
7517505 |
US $1.49 |
||
|
21
|
21
7052154 Valve,3-way,horiz ports |
7052154 |
US $35.67 |
||
|
22
|
22
7052148
Fitting, fuel outlet, reserve, 90 degree
|
7052148 |
— |
