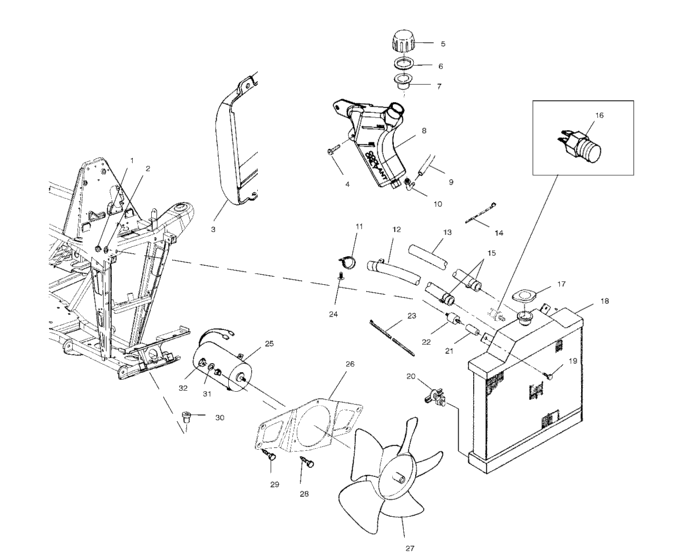

Cooling system (A01BA50AA) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A01BA50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
2
|
2
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
3
|
3
5432593
Shroud,fan,(atv)
ATV; |
5432593 |
— | ||
|
4
|
4
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
5
|
5
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
6
|
6
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
7
|
7
5433774 Cap,plug9x(grn),flex temp(10)GRN;10; |
5433774 |
US $3.26 |
||
|
8
|
8
5433410 Tank,surge |
5433410 |
US $65.99 |
||
|
9
|
9
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
10
|
10
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
11
|
11
7080869 Clamp-p,cushioned,1,25" i,d, |
7080869 |
US $9.85 |
||
|
12
|
12
8450050-63
Hose, water
Lower; |
8450050-63 |
— | ||
| replacement | |||||
|
12
|
12
8450050-305
Hose,water,305 cm.
Lower; |
8450050-305 |
— | ||
|
13
|
13
5411108
Hose,chafe-protected
Upper; |
5411108 |
— | ||
|
14
|
14
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
15
|
15
7080614 Clamp,hose10; |
7080614 |
US $6.69 |
||
|
16
|
16
4010202 Switch-thermal,4 stroke,500cc |
4010202 |
US $59.10 |
||
|
17
|
17
2511189
Cap, radiator
|
2511189 |
— | ||
| replacement | |||||
|
17
|
17
2511270 Cap, pressure,(13 lb) *** |
2511270 |
US $22.45 |
||
|
18
|
18
1240015
Radiator,"u"flow
|
1240015 |
— | ||
|
19
|
19
7515133 Screw10; |
7515133 |
US $5.25 |
||
|
20
|
20
7052181
Valve,drain cock
|
7052181 |
— | ||
|
21
|
21
5020937 Spacer |
5020937 |
US $7.51 |
||
|
22
|
22
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
23
|
23
7080492 Cable tie,11 inch10; |
7080492 |
US $3.64 |
||
|
24
|
24
7670090 Clip,plastic dart,nylon(10)10; |
7670090 |
US $39.40 |
||
|
25
|
25
4170013 Motor,fan,liq,d-shaft,conn |
4170013 |
US $293.46 |
||
|
26
|
26
5241355-067
Brkt,cool,fan,blk
|
5241355-067 |
— | ||
|
27
|
27
5242550
Blade,fan,nylon,8"
|
5242550 |
— | ||
|
28
|
28
7517475
Screw
|
7517475 |
— | ||
|
29
|
29
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
30
|
30
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
31
|
31
7558201 Washer, flat10; |
7558201 |
US $2.92 |
||
|
32
|
32
7547004 Nut (10) |
7547004 |
US $2.45 |
||
