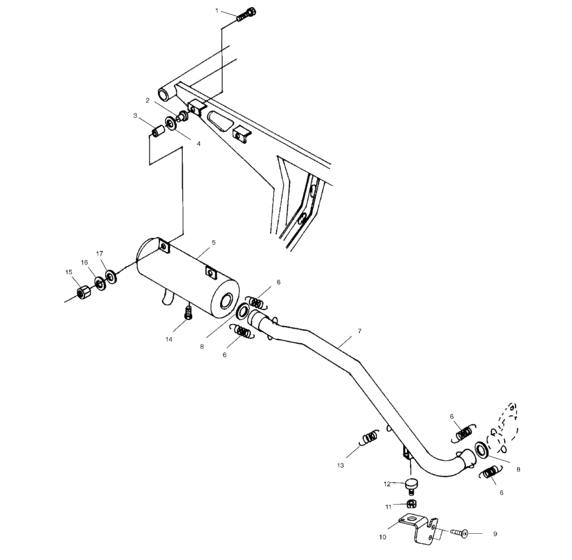

Exhaust system (A01BA50AA) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A01BA50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515316 Bolt10; |
7515316 |
US $2.98 |
||
|
2
|
2
5410241
Dampener, vibration
|
5410241 |
— | ||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
7555863 Washer10; |
7555863 |
US $3.75 |
||
|
5
|
5
1261006-029
Silencer,blk
|
1261006-029 |
— | ||
|
6
|
6
7041804 Spring |
7041804 |
US $9.85 |
||
|
7
|
7
1261005-029
Weld-exhaust pipe,blk
|
1261005-029 |
— | ||
|
8
|
8
5243518 Seal,exhaust |
5243518 |
US $35.12 |
||
|
9
|
9
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
10
|
10
5242344-067
Bracket, exhaust
|
5242344-067 |
— | ||
|
11
|
11
7542301 Nut hex10; |
7542301 |
US $2.45 |
||
|
12
|
12
3110064
Mount, torque stop
|
3110064 |
— | ||
|
13
|
13
7042029 Spring(10)10; |
7042029 |
US $2.17 |
||
|
14
|
14
7512666 Bolt10; |
7512666 |
US $3.75 |
||
|
15
|
15
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
16
|
16
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
17
|
17
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
