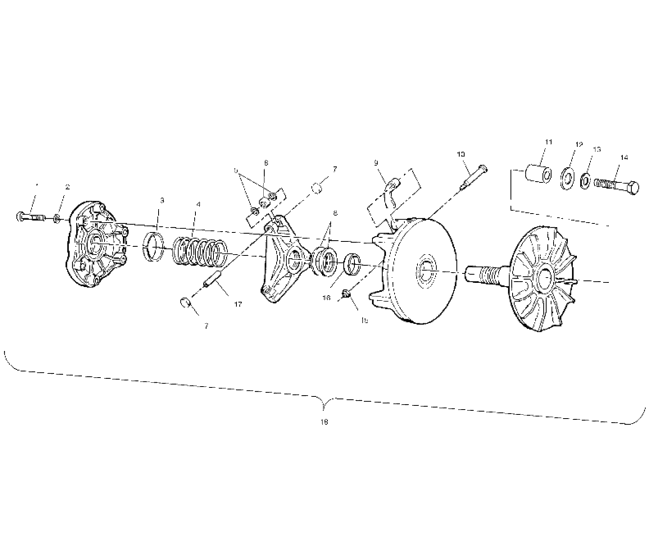

Drive clutch (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512176
Bolt
10; |
7512176 |
— | ||
| replacement | |||||
|
1
|
1
7512163 Bolt10; |
7512163 |
US $2.45 |
||
|
2
|
2
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
3
|
3
3576510 Bearing, cover,(10)10; |
3576510 |
US $9.85 |
||
|
4
|
4
7041157 Spring,clutch |
7041157 |
US $35.67 |
||
|
5
|
5
5430945 Washer(10)10; |
5430945 |
US $65.60 |
||
| replacement | |||||
|
5
|
5
5438247 Washer-clutch,spider roller10; |
5438247 |
US $26.30 |
||
|
6
|
6
1321457 Roller/bushing asm,(3) **6; |
1321457 |
US $26.60 |
||
|
7
|
7
5431936
Button,clutch (10)
|
5431936 |
— | ||
| replacement | |||||
|
7
|
7
5439254 Button,clutch,rubber backed |
5439254 |
US $12.81 |
||
|
8
|
8
5210752 Spacer,,020(10)10;.020; |
5210752 |
US $0.49 |
||
|
8
|
8
5210753 Spacer,,03210;.032; |
5210753 |
US $1.98 |
||
|
8
|
8
5210754 Spacer,,05010;.050; |
5210754 |
US $2.77 |
||
|
8
|
8
5242981 Spacer,,02510;.025; |
5242981 |
US $3.38 |
||
|
9
|
9
5632283 Weight, shift, 10-whf |
5632283 |
US $41.35 |
||
|
10
|
10
7512266 Bolt,shoulder(10)10; |
7512266 |
US $3.94 |
||
|
11
|
11
5430261 Bushing |
5430261 |
US $9.85 |
||
|
12
|
12
5210748 Washer(10)10; |
5210748 |
US $65.60 |
||
|
13
|
13
7575202 Washer lock10; |
7575202 |
US $7.88 |
||
|
14
|
14
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
15
|
15
7541906 Nut flexloc(10)10; |
7541906 |
US $52.50 |
||
|
16
|
16
3576504 Bushing,moveable,1/2 inch |
3576504 |
US $21.49 |
||
|
17
|
17
5020422 Pin-roller,(10)10; |
5020422 |
US $3.75 |
||
| replacement | |||||
|
17
|
17
5133079 Pin-roller,1",sbn10; |
5133079 |
US $9.10 |
||
|
18
|
18
1321632
Asm., drive clutch, atv-06
ATV-06;Incl. All Less 49; |
1321632 |
— | ||
