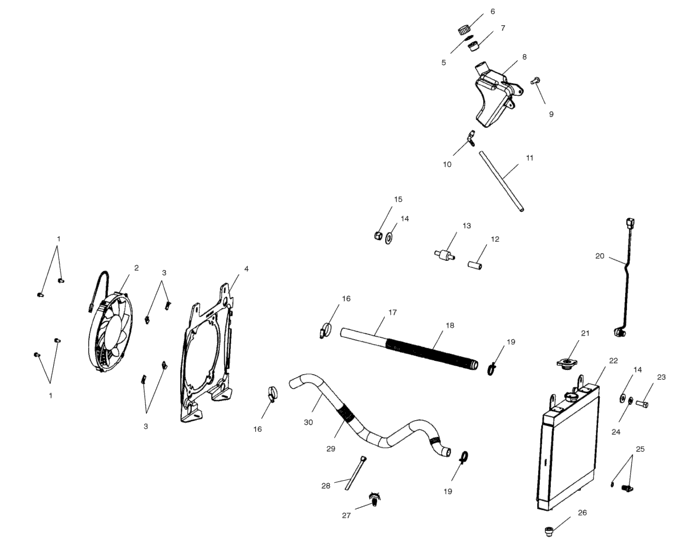

Cooling system (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517659 Screw |
7517659 |
US $1.89 |
||
|
2
|
2
2410123 Fan&motor,asm,spal |
2410123 |
US $267.05 |
||
|
3
|
3
7670111 Clip,u |
7670111 |
US $2.70 |
||
|
4
|
4
5434043 Shroud-fan |
5434043 |
US $91.60 |
||
|
5
|
5
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
6
|
6
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
7
|
7
5433774 Cap,plug9x(grn),flex temp(10)GRN;10; |
5433774 |
US $3.26 |
||
|
8
|
8
5433410 Tank,surge |
5433410 |
US $65.99 |
||
|
9
|
9
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
10
|
10
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
11
|
11
8450003-600
Line, fuel
|
8450003-600 |
— | ||
|
12
|
12
5020937 Spacer |
5020937 |
US $7.51 |
||
|
13
|
13
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
14
|
14
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
15
|
15
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
16
|
16
7080614 Clamp,hose10; |
7080614 |
US $6.69 |
||
|
17
|
17
5411985 Hose-upper engine |
5411985 |
US $81.76 |
||
|
18
|
18
5521511 Guard-hose,12" |
5521511 |
US $9.15 |
||
|
19
|
19
7080826 Clamp-roto clip |
7080826 |
US $2.98 |
||
|
20
|
20
4010161 Sensor-thermal/harness |
4010161 |
US $93.56 |
||
|
21
|
21
1240093 Cap-pressure,13 lbs, |
1240093 |
US $56.14 |
||
|
22
|
22
1240090
Radiator
|
1240090 |
— | ||
|
23
|
23
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
24
|
24
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
25
|
25
7052296
Valve-plastic drain
|
7052296 |
— | ||
|
26
|
26
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
27
|
27
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
28
|
28
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
29
|
29
5521550
Plastic,hoseguard 18"
|
5521550 |
— | ||
|
30
|
30
5411989 Hose-lower engine |
5411989 |
US $81.76 |
