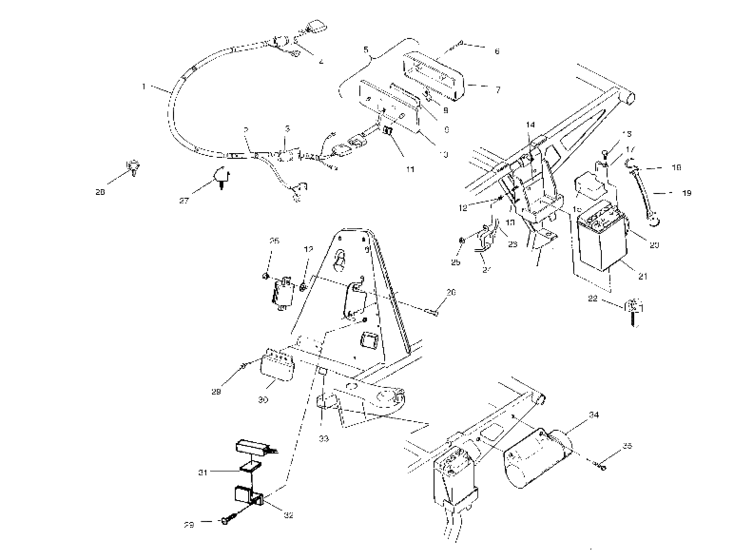

Electrical/taillight (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460942
Harness-main,scr 500 2x4
|
2460942 |
— | ||
|
2
|
2
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
3
|
3
2434012 Ckt,breaker,20 amp, |
2434012 |
US $45.69 |
||
|
4
|
4
2201795 Kit-circut breaker,fan |
2201795 |
US $47.67 |
||
|
5
|
5
2432038
Light, tail/brake
Incl. 6-10;If built before 2/04/02; |
2432038 |
— | ||
|
5
|
5
2410319 Asm-taillight,12v,series filIncl. 6-10;If built after 2/04/02; |
2410319 |
US $76.81 |
||
|
6
|
6
7512088 Screw |
7512088 |
US $2.98 |
||
|
7
|
7
4032085 Lens,stop&t/l, |
4032085 |
US $24.43 |
||
|
8
|
8
4030043 Bulb |
4030043 |
US $4.94 |
||
|
9
|
9
4032086 Gasket,t/l&stop/l |
4032086 |
US $7.09 |
||
|
10
|
10
4032087 Backing,(stop&tail)STOP&TAIL; |
4032087 |
US $9.15 |
||
|
11
|
11
7670093 Clip, retainer(10)10; |
7670093 |
US $3.75 |
||
|
12
|
12
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
13
|
13
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
14
|
14
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
15
|
15
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
16
|
16
2200361 Kit-battery bolt (short)SHORT; |
2200361 |
US $1.77 |
||
|
17
|
17
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
18
|
18
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
19
|
19
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
20
|
20
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
21
|
21
4140006 Battery |
4140006 |
US $275.60 |
||
|
22
|
22
7670102 Clip10; |
7670102 |
US $5.25 |
||
|
23
|
23
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
24
|
24
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
25
|
25
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
26
|
26
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
27
|
27
7670109 Clip-routing |
7670109 |
US $3.75 |
||
|
28
|
28
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
29
|
29
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
30
|
30
4010137
Limiter,rpm,350 hz,lr44-3
|
4010137 |
— | ||
|
31
|
31
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
31
|
31
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
32
|
32
5241416 Bracket-cdi |
5241416 |
US $7.09 |
||
|
33
|
33
8360012
Edge trim - black
|
8360012 |
— | ||
| replacement | |||||
|
33
|
33
5521131 Trim,edge,6ft,black |
5521131 |
US $33.50 |
||
|
34
|
34
2620087
Toolbox asm.
AB; |
2620087 |
— | ||
| replacement | |||||
|
34
|
34
2632221
Toolbox asm
AB; |
2632221 |
— | ||
|
34
|
34
5811079
Gasket,toolbox lid
AB; |
5811079 |
— | ||
|
35
|
35
7517386 Screw(10)10;AB; |
7517386 |
US $19.60 |
||
