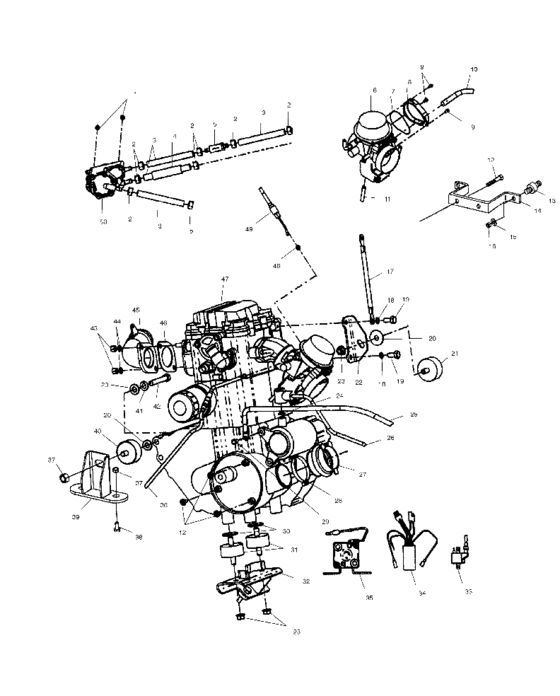

Engine mounting (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7546601
Nut, nylok(10)
10; |
7546601 |
— | ||
|
2
|
2
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
3
|
3
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
4
|
4
8450080-58
Sheath, foil, laminated
|
8450080-58 |
— | ||
| replacement | |||||
|
4
|
4
8450080-65
Sheath, foil
|
8450080-65 |
— | ||
|
5
|
5
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
7
|
7
3130929 O-ring |
3130929 |
US $22.84 |
||
|
8
|
8
3130930 Cover |
3130930 |
US $18.32 |
||
|
9
|
9
3130924 Screw |
3130924 |
US $1.77 |
||
|
10
|
10
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
11
|
11
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
12
|
12
3084205 Asm,,screw & washer(10)10; |
3084205 |
US $5.04 |
||
|
13
|
13
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
14
|
14
5242258-067
Bracket, carburetor mount
|
5242258-067 |
— | ||
|
15
|
15
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
16
|
16
7542105 Nut hex10; |
7542105 |
US $3.26 |
||
|
17
|
17
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
18
|
18
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
19
|
19
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
20
|
20
7555823 Washer10; |
7555823 |
US $6.56 |
||
|
21
|
21
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
21
|
21
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
22
|
22
5242674-067
Brkt,eng,mt,top,blk
|
5242674-067 |
— | ||
|
23
|
23
7547108 Nut |
7547108 |
US $2.98 |
||
|
24
|
24
3083648 O ring |
3083648 |
US $2.45 |
||
|
25
|
25
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
26
|
26
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
27
|
27
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
28
|
28
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
29
|
29
3082038 Bolt&washer asm, |
3082038 |
US $1.49 |
||
|
30
|
30
7555815 Washer, flat10; |
7555815 |
US $3.26 |
||
|
31
|
31
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
32
|
32
1013222-067 Mount,engine,rear,500,blk |
1013222-067 |
US $29.54 |
||
|
33
|
33
3084630
Desc not_available
|
3084630 |
— | ||
|
34
|
34
3086982
Cdi-system
|
3086982 |
— | ||
|
35
|
35
3083211
Switch-magnetic
|
3083211 |
— | ||
| replacement | |||||
|
35
|
35
3085521
Switch, magnetic
|
3085521 |
— | ||
|
36
|
36
7081007
Cable, choke
|
7081007 |
— | ||
|
37
|
37
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
38
|
38
7515398 Screw10; |
7515398 |
US $3.75 |
||
|
39
|
39
1040688-067 Mount,fr,engine,blk, |
1040688-067 |
US $17.24 |
||
|
40
|
40
3110067
Mount,motor
|
3110067 |
— | ||
|
41
|
41
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
42
|
42
7515438 Bolt10; |
7515438 |
US $3.94 |
||
|
43
|
43
3080285
Nut
10; |
3080285 |
— | ||
|
44
|
44
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
45
|
45
1260994-029
Manifold,blk.
|
1260994-029 |
— | ||
|
46
|
46
3084689
Gasket, exh
|
3084689 |
— | ||
| replacement | |||||
|
46
|
46
3085075 Asm,,gasket(exhaust) |
3085075 |
US $50.19 |
||
|
47
|
47
3085822
Engine, short block
NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization required fo; |
3085822 |
— | ||
|
48
|
48
3130543 Guide,cable |
3130543 |
US $19.30 |
||
|
49
|
49
7080967 Cable-throttle,1/4 turn,4 stk |
7080967 |
US $63.95 |
||
|
50
|
50
3085275
Asm., fuel pump
|
3085275 |
— | ||
