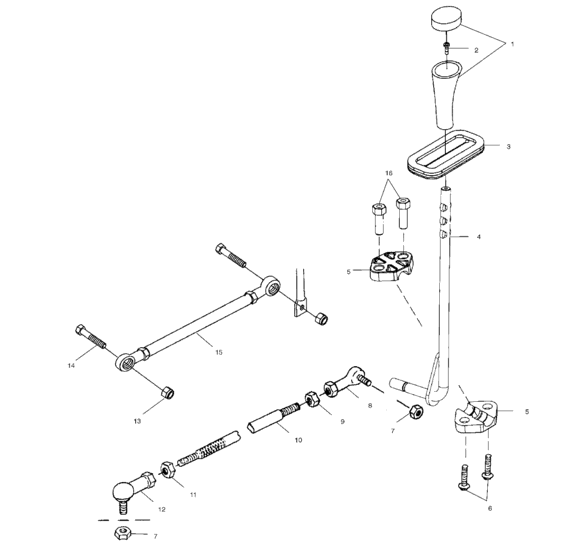

Gear selector (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411006
Cover, shift knob
|
5411006 |
— | ||
| replacement | |||||
|
1
|
1
3233198 Knob asm,hi/rev, |
3233198 |
US $28.58 |
||
|
1
|
1
5411007
Knob, gear selector shift
|
5411007 |
— | ||
| replacement | |||||
|
1
|
1
3233198 Knob asm,hi/rev, |
3233198 |
US $28.58 |
||
|
2
|
2
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
3
|
3
5411008
Grommet,hr shifter
|
5411008 |
— | ||
|
4
|
4
1013223-067 Gear selector,scr 500,blk |
1013223-067 |
US $65.99 |
||
|
5
|
5
5433103
Mount-gear selector,hi/rev
|
5433103 |
— | ||
|
6
|
6
7515133 Screw10; |
7515133 |
US $5.25 |
||
|
7
|
7
7546707
Nut
10;If built before 8/22/01; |
7546707 |
— | ||
| replacement | |||||
|
7
|
7
7546703
Nut,nylok
10;If built before 8/22/01; |
7546703 |
— | ||
|
8
|
8
7061013 Rod end,lh,6mm.If built before 8/22/01; |
7061013 |
US $89.79 |
||
|
9
|
9
7546702 Nut(10)10;If built before 8/22/01; |
7546702 |
US $1.49 |
||
|
10
|
10
5020955 Rod,shift linkageIf built before 8/22/01; |
5020955 |
US $40.58 |
||
|
11
|
11
7546701 Nut(10)10;If built before 8/22/01; |
7546701 |
US $1.49 |
||
|
12
|
12
7061014 Rod end,rh,6mm.If built before 8/22/01; |
7061014 |
US $89.79 |
||
|
13
|
13
7543707
Nut
10;If built after 8/22/01; |
7543707 |
— | ||
|
14
|
14
7518001 Scr-hex,m6x30If built after 8/22/01; |
7518001 |
US $2.98 |
||
|
15
|
15
1821206
Shift linkage-asm,19,9"
If built after 8/22/01; |
1821206 |
— | ||
|
16
|
16
5131976 Spacer-hex shifter,hi/rev |
5131976 |
US $4.94 |
||
