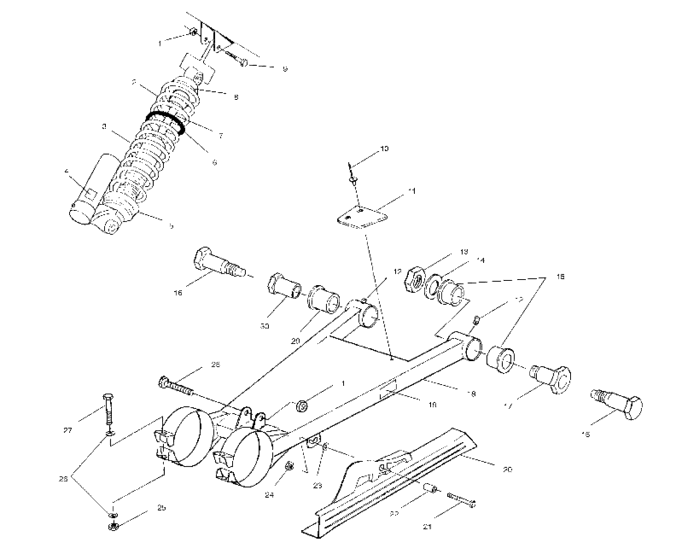

Swing arm/shock mounting (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
2
|
2
7041864-067 Spring-comp,280#/in,black |
7041864-067 |
US $67.34 |
||
|
3
|
3
7041865-067 Spring-comp,180#/in,black |
7041865-067 |
US $67.34 |
||
|
4
|
4
7075343
Decal, warning, fox shock
FOX ATV SHOCK; |
7075343 |
— | ||
|
5
|
5
1500278 Ring,spring,preload 234-00-063 |
1500278 |
US $76.81 |
||
|
6
|
6
5433550 Spacer-spring |
5433550 |
US $16.24 |
||
|
7
|
7
7041867
Shock-rear mono,gas,ch,19,08lg
|
7041867 |
— | ||
|
8
|
8
5631045
Retainer, spring
|
5631045 |
— | ||
|
9
|
9
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
|
10
|
10
7661046 Rivet-pop,3/16(,376-,500)(50).376-.500;50; |
7661046 |
US $1.89 |
||
|
11
|
11
5432727 Guide,chain pad |
5432727 |
US $18.32 |
||
|
12
|
12
7080510 Fitting, zerk,90 degree10; |
7080510 |
US $7.68 |
||
|
13
|
13
7547082 Nut,hex,jam |
7547082 |
US $40.15 |
||
|
14
|
14
7556035 Washer,flat10; |
7556035 |
US $9.85 |
||
|
15
|
15
5433412 Bushing, swing arm, rh |
5433412 |
US $10.83 |
||
|
16
|
16
5131697 Bolt,swingarm pivot |
5131697 |
US $44.29 |
||
|
17
|
17
5133167 Bushing-pivot,rh |
5133167 |
US $44.29 |
||
|
18
|
18
1541395
Asm., swing arm
Incl. 12,15,29; |
1541395 |
— | ||
|
19
|
19
7078572 Decal-"chain freeplay",hybrid |
7078572 |
US $1.89 |
||
|
20
|
20
5432854 Guard,chain |
5432854 |
US $35.67 |
||
|
21
|
21
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
22
|
22
5332828 Bushing |
5332828 |
US $7.18 |
||
|
23
|
23
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
24
|
24
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
25
|
25
7547066 Nut-7/16-20,nylok,y (10) |
7547066 |
US $39.40 |
||
|
26
|
26
7555883 Washer10; |
7555883 |
US $2.98 |
||
|
27
|
27
7512576 Bolt10; |
7512576 |
US $6.69 |
||
|
28
|
28
7517761 Screw 3/8-24x2,5hx/cp gr8-y |
7517761 |
US $3.75 |
||
|
29
|
29
5433411
Bushing, swing arm, lh
|
5433411 |
— | ||
|
30
|
30
5133166 Bushing-pivot,lh |
5133166 |
US $31.01 |
