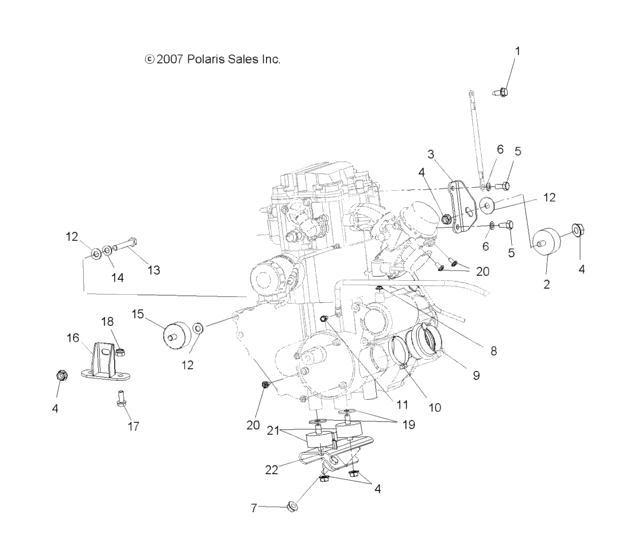

Engine, mounting (A09BA50FA) Diagram Polaris SCRAMBLER 500 2X4 INTL
- Model code
- A09BA50FA
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
2
|
2
3022071
Isolator-3/8-24m/m,60duro
|
3022071 |
— | ||
| replacement | |||||
|
2
|
2
3023593 Isolator-3/8-24M/m,60Duro |
3023593 |
US $39.38 |
||
|
3
|
3
5242674 Bracket, engine mount, top |
5242674 |
US $4.34 |
||
|
4
|
4
7547108 Nut |
7547108 |
US $2.98 |
||
|
5
|
5
7512315 Bolt |
7512315 |
US $2.98 |
||
|
6
|
6
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
7
|
7
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
8
|
8
3083649 Nut, flange(10) |
3083649 |
US $1.89 |
||
|
9
|
9
5412487
Boot-clutch,intake
|
5412487 |
— | ||
|
10
|
10
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
11
|
11
3084874 Bolt, flange |
3084874 |
US $1.77 |
||
|
12
|
12
7555823 Washer |
7555823 |
US $6.56 |
||
|
13
|
13
7515417 Screw |
7515417 |
US $3.94 |
||
|
14
|
14
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
15
|
15
3110067
Mount,motor
|
3110067 |
— | ||
|
16
|
16
1040688-067 Mount,fr,engine,blk, |
1040688-067 |
US $17.24 |
||
|
17
|
17
7515398 Screw |
7515398 |
US $3.75 |
||
|
18
|
18
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
19
|
19
7555815 Washer, flat |
7555815 |
US $3.26 |
||
|
20
|
20
3084205 Asm,,screw & washer(10) |
3084205 |
US $5.04 |
||
|
21
|
21
3022072 Isolator-3/8-24m,3/8-16m,60dur |
3022072 |
US $28.58 |
||
|
22
|
22
1013222-067 Mount,engine,rear,500,blk |
1013222-067 |
US $29.54 |
||
