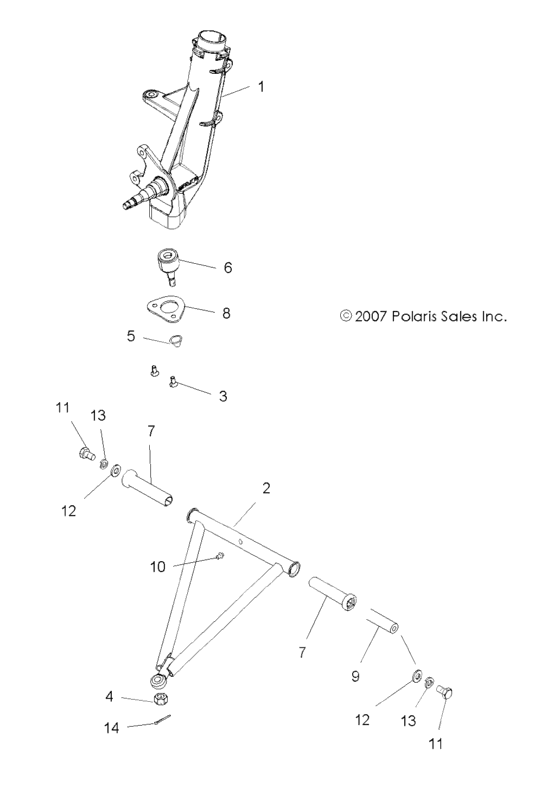

Suspension, a-arm and strut mounting (A09BA50FA) Diagram Polaris SCRAMBLER 500 2X4 INTL
- Model code
- A09BA50FA
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5135136 Support-strut/spindle(mach)rh |
5135136 |
US $284.62 |
||
|
1
|
1
5135135 Support-strut/spindle(mach)lh |
5135135 |
US $284.62 |
||
|
2
|
2
2202276
Kit, a-frame, lh
Incl. 7,9-13; |
2202276 |
— | ||
|
2
|
2
2202277
Kit, a-frame, rh
Incl. 7,9-13; |
2202277 |
— | ||
|
3
|
3
7512284 Bolt, socket(10) |
7512284 |
US $1.96 |
||
|
4
|
4
7542438 Nut, castle(10) |
7542438 |
US $2.63 |
||
|
5
|
5
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
6
|
6
7061158 Ball-joint,greaseless,strut |
7061158 |
US $95.38 |
||
|
7
|
7
5434551
Bushing-a-arm,long,blk
|
5434551 |
— | ||
| replacement | |||||
|
7
|
7
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
8
|
8
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
9
|
9
5133806 Shaft-a-arm |
5133806 |
US $47.23 |
||
|
10
|
10
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
11
|
11
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
12
|
12
7555832 Washer |
7555832 |
US $5.25 |
||
|
13
|
13
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
14
|
14
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
