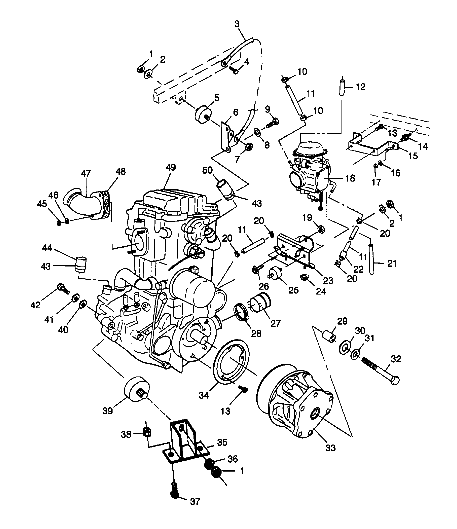

Engine mounting (W98BC50A) Diagram Polaris SCRAMBLER 500
- Model code
- W98BC50A
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542411 Nut,flexloc(10)10; |
7542411 |
US $1.77 |
||
|
2
|
2
7555801 Washer10; |
7555801 |
US $2.45 |
||
|
3
|
3
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
4
|
4
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
5
|
5
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
5
|
5
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
6
|
6
5242674-067
Brkt,eng,mt,top,blk
|
5242674-067 |
— | ||
|
7
|
7
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
8
|
8
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
9
|
9
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
10
|
10
7080307 Clamp,hose(10)10; |
7080307 |
US $0.79 |
||
|
11
|
11
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
11
|
11
5811373 Foil-tape |
5811373 |
US $3.06 |
||
|
12
|
12
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
14
|
14
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
15
|
15
5242258-067
Bracket, carburetor mount
|
5242258-067 |
— | ||
|
16
|
16
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
17
|
17
7542105 Nut hex10; |
7542105 |
US $3.26 |
||
|
19
|
19
7542459 Nut, flanged(10)10; |
7542459 |
US $65.60 |
||
|
20
|
20
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
21
|
21
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
22
|
22
8450080-58
Sheath, foil, laminated
|
8450080-58 |
— | ||
| replacement | |||||
|
22
|
22
8450080-65
Sheath, foil
|
8450080-65 |
— | ||
|
23
|
23
1040661-067
Mount,r.engine,blk
|
1040661-067 |
— | ||
| replacement | |||||
|
23
|
23
1012883-067 Mount,engine,rear,blk |
1012883-067 |
US $24.43 |
||
|
24
|
24
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
25
|
25
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
26
|
26
7517289 Screw10; |
7517289 |
US $3.94 |
||
|
27
|
27
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
28
|
28
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
29
|
29
5430261 Bushing |
5430261 |
US $9.10 |
||
|
30
|
30
5210748 Washer(10)10; |
5210748 |
US $5.25 |
||
|
31
|
31
7575202 Washer lock10; |
7575202 |
US $6.56 |
||
|
32
|
32
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
35
|
35
1040688-067 Mount,fr,engine,blk, |
1040688-067 |
US $17.24 |
||
|
36
|
36
7555806 Washer,flat(10)10; |
7555806 |
US $3.94 |
||
|
37
|
37
7515398 Screw10; |
7515398 |
US $3.75 |
||
|
38
|
38
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
39
|
39
3110067
Mount,motor
|
3110067 |
— | ||
|
40
|
40
7555832 Washer10; |
7555832 |
US $5.25 |
||
|
41
|
41
7553001
Washer springlock
10; |
7553001 |
— | ||
| replacement | |||||
|
41
|
41
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
42
|
42
7515438 Bolt10; |
7515438 |
US $3.94 |
||
|
43
|
43
7080696 Clamp,hose,1,25,worm drive |
7080696 |
US $3.94 |
||
|
47
|
47
1260872-029
Manifold,blk
|
1260872-029 |
— | ||
|
49
|
49
3085822
Engine, short block
See Footnote; |
3085822 |
— | ||
