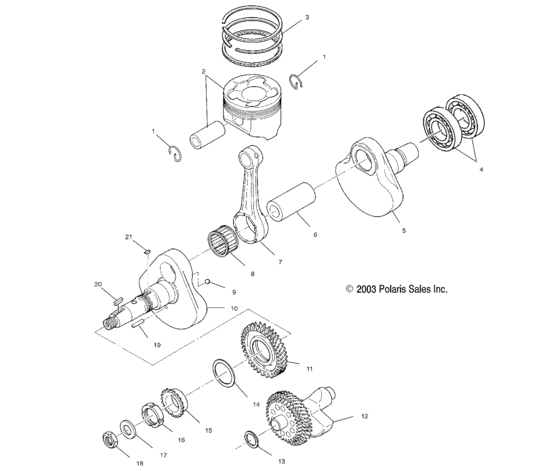

Crankshaft and piston (A04BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A04BG50AA/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3085534 Clip(2) |
3085534 |
from US $3.20 |
||
|
2
|
2
3087221 Set,piston,standardStd;Incl. 1; |
3087221 |
US $230.42 |
||
|
2
|
2
3087222 Set,piston,,010"/,25mm o/s0.25 O/S;Incl. 1; |
3087222 |
US $217.61 |
||
|
2
|
2
3087223 Set,piston,,020"/,50mm o/s0.50 O/S;Incl. 1; |
3087223 |
US $232.98 |
||
|
3
|
3
3087224 Set,piston,ring,standard *Std; |
3087224 |
US $88.57 |
||
|
3
|
3
3087225 Set,piston,ring,,010"/,25mm o/s0.25 O/S; |
3087225 |
US $86.26 |
||
|
3
|
3
3087226 Set,piston,ring,,020"/,50mm o/s0.50 O/S; |
3087226 |
US $86.26 |
||
|
4
|
4
3085815 Bearing,ball |
3085815 |
US $54.15 |
||
|
5
|
5
3085812 Crankshaft,#2 |
3085812 |
US $630.26 |
||
|
6
|
6
3085341
Pin, crank
|
3085341 |
— | ||
|
7
|
7
3085813
Rod,connecting
|
3085813 |
— | ||
|
8
|
8
3085400 Bearing,large end |
3085400 |
US $97.44 |
||
| replacement | |||||
|
8
|
8
3085343
Bearing, end, large
|
3085343 |
— | ||
|
9
|
9
3085024 Ball, steel |
3085024 |
US $7.91 |
||
|
10
|
10
3089257
Asm., crankshaft
Incl. 4-11,19; |
3089257 |
— | ||
|
10
|
10
3089258
Crankshaft 1
|
3089258 |
— | ||
|
11
|
11
3089245 Balance gear 1 |
3089245 |
US $121.14 |
||
|
12
|
12
3086837
Shaft,balancer *
|
3086837 |
— | ||
|
13
|
13
3084895 Spacer,0,80.8; |
3084895 |
US $4.94 |
||
|
13
|
13
3084896 Spacer,1,01.0; |
3084896 |
US $4.94 |
||
|
13
|
13
3084897 Spacer,1,21.2; |
3084897 |
US $4.94 |
||
|
14
|
14
3240088 Spacer,0,60.6; |
3240088 |
US $9.91 |
||
|
14
|
14
3084892 Spacer,0,80.8; |
3084892 |
US $11.25 |
||
|
14
|
14
3084893 Spacer,1,01.0; |
3084893 |
US $16.24 |
||
|
14
|
14
3084894 Spacer,1,21.2; |
3084894 |
US $16.24 |
||
|
15
|
15
3084882
Sprocket 1
|
3084882 |
— | ||
|
16
|
16
3085528 Nut,slit |
3085528 |
US $28.07 |
||
|
17
|
17
3086767
Washer
|
3086767 |
— | ||
| replacement | |||||
|
17
|
17
3083904
Washer
|
3083904 |
— | ||
|
18
|
18
3083905
Nut,lock
|
3083905 |
— | ||
|
19
|
19
3086838 Pin,dowel |
3086838 |
US $4.73 |
||
|
20
|
20
3081447 Key |
3081447 |
US $28.80 |
||
|
21
|
21
3240168 Key, woodruff,(10) |
3240168 |
US $147.70 |
||
