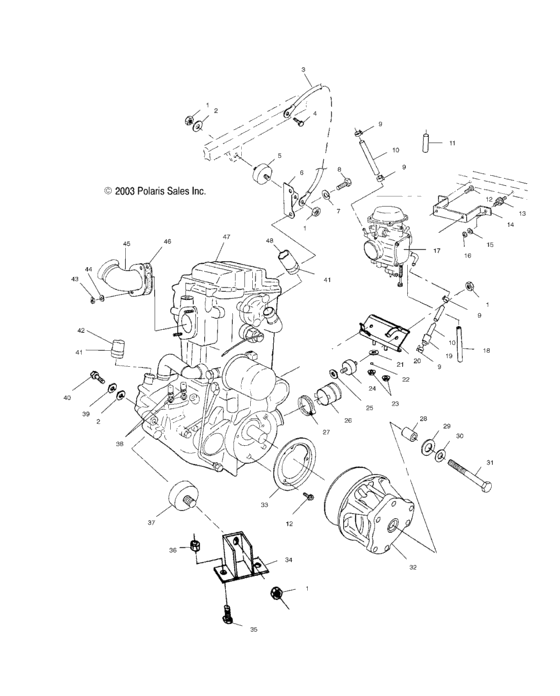

Engine mounting (A04BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A04BG50AA/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547108 Nut |
7547108 |
US $2.98 |
||
|
2
|
2
7555823 Washer |
7555823 |
US $6.56 |
||
|
3
|
3
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
4
|
4
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
5
|
5
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
5
|
5
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
6
|
6
5242674 Bracket, engine mount, top |
5242674 |
US $4.34 |
||
|
7
|
7
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
8
|
8
7512315 Bolt |
7512315 |
US $2.98 |
||
|
9
|
9
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
10
|
10
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
11
|
11
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
12
|
12
3084205 Asm,,screw & washer(10) |
3084205 |
US $5.04 |
||
|
13
|
13
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
14
|
14
5242258-067
Bracket, carburetor mount
|
5242258-067 |
— | ||
|
15
|
15
7552605 Washer |
7552605 |
US $3.92 |
||
|
16
|
16
7542105 Nut hex |
7542105 |
US $3.26 |
||
|
18
|
18
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
19
|
19
8450080-58
Sheath, foil, laminated
|
8450080-58 |
— | ||
| replacement | |||||
|
19
|
19
8450080-65
Sheath, foil
|
8450080-65 |
— | ||
|
20
|
20
1013222-067 Mount,engine,rear,500,blk |
1013222-067 |
US $29.54 |
||
|
21
|
21
5132775 Spacer-1,00x,38x,36 |
5132775 |
US $18.81 |
||
|
22
|
22
5412005 O-ring-,312x,432x,06 |
5412005 |
US $2.07 |
||
|
23
|
23
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
24
|
24
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
25
|
25
7555815 Washer, flat |
7555815 |
US $3.26 |
||
|
26
|
26
5412487
Boot-clutch,intake
|
5412487 |
— | ||
|
27
|
27
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
28
|
28
5430261 Bushing |
5430261 |
US $9.10 |
||
|
29
|
29
5210748 Washer(10) |
5210748 |
US $5.25 |
||
|
30
|
30
7575202 Washer lock |
7575202 |
US $6.56 |
||
|
31
|
31
7512566 Bolt |
7512566 |
US $12.79 |
||
|
34
|
34
1040688-067 Mount,fr,engine,blk, |
1040688-067 |
US $17.24 |
||
|
35
|
35
7515398 Screw |
7515398 |
US $3.75 |
||
|
36
|
36
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
37
|
37
3110067
Mount,motor
|
3110067 |
— | ||
|
38
|
38
7080474 Clamp, hose (10) |
7080474 |
US $5.64 |
||
|
39
|
39
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
40
|
40
7515438 Bolt |
7515438 |
US $3.94 |
||
|
41
|
41
7080696 Clamp,hose,1,25,worm drive |
7080696 |
US $3.94 |
||
|
45
|
45
1261171-029
Manifold, black
|
1261171-029 |
— | ||
|
47
|
47
3085822
Engine, short block
EH50PLE12; NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required f; |
3085822 |
— | ||
