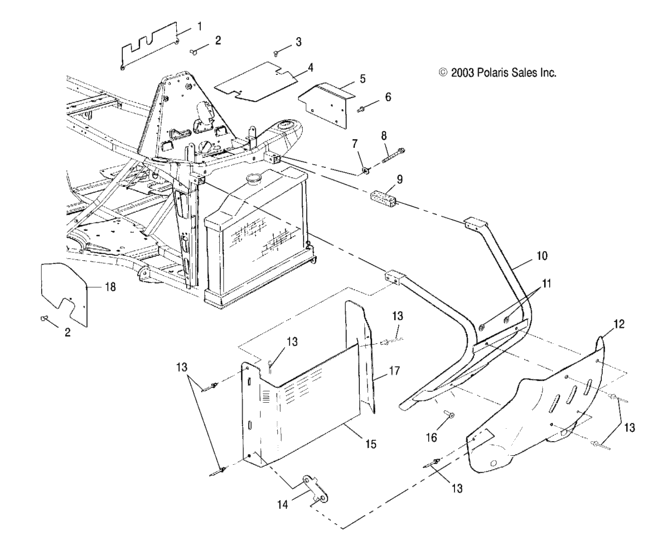

Front bumper and shields (A04BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A04BG50AA/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5434162 Shield-splash,rear |
5434162 |
US $15.26 |
||
|
2
|
2
7670088 Clip,plastic dart,nylon |
7670088 |
US $2.45 |
||
|
3
|
3
7522026 Screw |
7522026 |
US $2.45 |
||
|
4
|
4
5435455 Shield-splash,front |
5435455 |
US $16.24 |
||
|
5
|
5
5245415-067
Shield, splash, lh
If built before 8/01/03; |
5245415-067 |
— | ||
|
5
|
5
5247602-067 Shield-splash,lh,blkIf built after 8/01/03; |
5247602-067 |
US $16.24 |
||
|
6
|
6
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
7
|
7
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
8
|
8
7512329 Bolt |
7512329 |
US $4.59 |
||
|
9
|
9
5811675 Plug,frame,foam |
5811675 |
US $4.15 |
||
|
10
|
10
1012773-067 Bumper,fr,gen 3,blk, |
1012773-067 |
US $228.94 |
||
|
11
|
11
7555827 Washer |
7555827 |
US $3.26 |
||
|
12
|
12
5432378-070 Plate,skid,bumper,blk |
5432378-070 |
US $76.81 |
||
|
13
|
13
7661121 Rivet-1/4"multigrip,,08-,35,b ( |
7661121 |
US $1.89 |
||
|
14
|
14
5242694-067
Bracket, radiator shield
|
5242694-067 |
— | ||
|
15
|
15
5245343-067
Shield, radiator, side, rh
|
5245343-067 |
— | ||
|
16
|
16
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
17
|
17
5245342-067 Shield-radiator side,lh,st,blk |
5245342-067 |
US $46.87 |
||
|
18
|
18
5434085 Guard-splash,rh |
5434085 |
US $35.67 |
