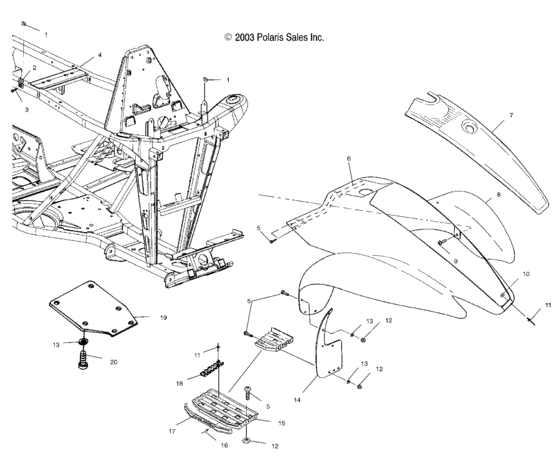

Front cab (A04BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A04BG50AA/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
2
|
2
5244482-067
Bracket, cab mount, black, lh
|
5244482-067 |
— | ||
|
2
|
2
5244483-067
Bracket, cab mount, black, rh
|
5244483-067 |
— | ||
|
3
|
3
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
4
|
4
1014443-067
Main frame,blk **
|
1014443-067 |
— | ||
|
5
|
5
7512282 Bolt, black(10) |
7512282 |
US $1.89 |
||
|
6
|
6
5811527 Seal,foam |
5811527 |
US $13.79 |
||
|
7
|
7
5432553-177
Cover-front,blk met
|
5432553-177 |
— | ||
|
8
|
8
2632424-177
Cab,frt,gen 3,blk met
w/Warning Decals; |
2632424-177 |
— | ||
|
9
|
9
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
10
|
10
7558201 Washer, flat |
7558201 |
US $2.92 |
||
|
11
|
11
7621472 Rivet(50) * |
7621472 |
US $98 |
||
|
12
|
12
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
13
|
13
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
14
|
14
5811831 Mudflap-front,hybrid,lh |
5811831 |
US $27.39 |
||
|
14
|
14
5850150 Mudflap,rh,fr,hybrid |
5850150 |
US $27.39 |
||
|
15
|
15
1013249-067 Footpad,cds,steel,blk |
1013249-067 |
US $79.17 |
||
|
16
|
16
7661825 Rivet,(50) |
7661825 |
US $0.79 |
||
|
17
|
17
5431484
Trim, footrest
|
5431484 |
— | ||
|
18
|
18
5242525-067 Brkt,heel cleat,blk |
5242525-067 |
US $20.28 |
||
|
19
|
19
5432763 Guard,rock |
5432763 |
US $128.21 |
||
|
20
|
20
7515179 Screw |
7515179 |
US $2.98 |
