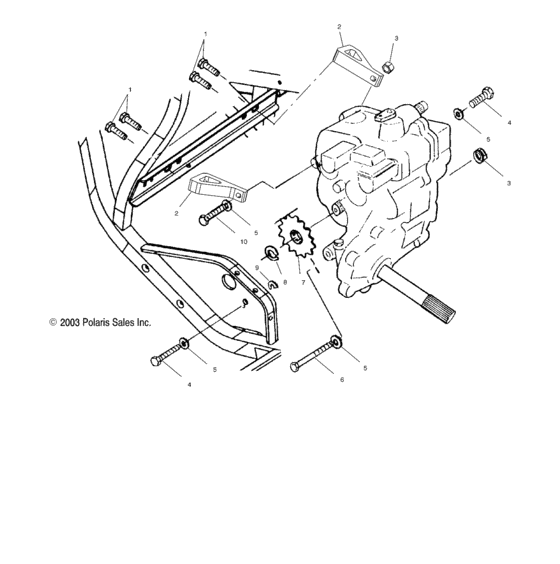

Gearcase mounting (A04BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A04BG50AA/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517632 Screw |
7517632 |
US $4.24 |
||
|
2
|
2
5132046 Mount-transmission,rear,mach |
5132046 |
US $38.61 |
||
|
3
|
3
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
4
|
4
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
5
|
5
7555806 Washer,flat(10) |
7555806 |
US $13.10 |
||
|
6
|
6
7517646 Screw |
7517646 |
US $6.30 |
||
|
7
|
7
3221041 Spkt,13t,splined * |
3221041 |
US $49.23 |
||
|
8
|
8
7710434 Ring,snap(10) |
7710434 |
US $19.80 |
||
|
9
|
9
5211065 Shim,,010 |
5211065 |
US $7.09 |
||
|
9
|
9
5210764 Spacer-,020 |
5210764 |
US $6.14 |
||
|
9
|
9
5211517 Shim,(,030) |
5211517 |
US $8.84 |
||
|
10
|
10
7517642 Screw |
7517642 |
US $6.69 |
