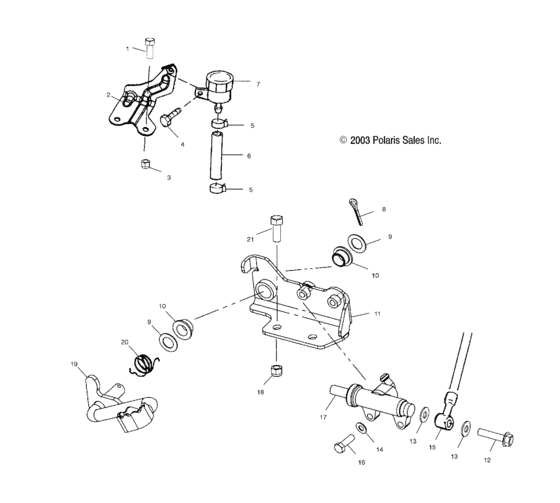

Rear brake master cylinder (A04BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A04BG50AA/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512113 Bolt |
7512113 |
US $2.45 |
||
|
2
|
2
5244091-067 Brkt,reservoir mnt,blk |
5244091-067 |
US $7.09 |
||
|
3
|
3
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
4
|
4
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
5
|
5
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
6
|
6
1910404
Hose,reservoir,1/4id,4,75 in
|
1910404 |
— | ||
|
7
|
7
1930854 Reservoir asm,r,brake |
1930854 |
US $27.58 |
||
|
8
|
8
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
||
|
9
|
9
7555919 Washer |
7555919 |
US $6.21 |
||
|
10
|
10
5433189 Bushing-pedal pivot |
5433189 |
US $6.56 |
||
|
11
|
11
1910375-067 Mount,brake,cds,blk |
1910375-067 |
US $28.58 |
||
|
12
|
12
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
13
|
13
5410988
Seal
|
5410988 |
— | ||
|
14
|
14
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
16
|
16
7515179 Screw |
7515179 |
US $2.98 |
||
|
17
|
17
1910311
Asm., foot brake master cylinder
|
1910311 |
— | ||
|
18
|
18
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
19
|
19
1910377-067
Brake rod,cds,gen 3,blk
|
1910377-067 |
— | ||
|
20
|
20
7041750 Spring-torsion,brake |
7041750 |
US $9.85 |
||
|
21
|
21
7515321 Bolt |
7515321 |
US $1.89 |
