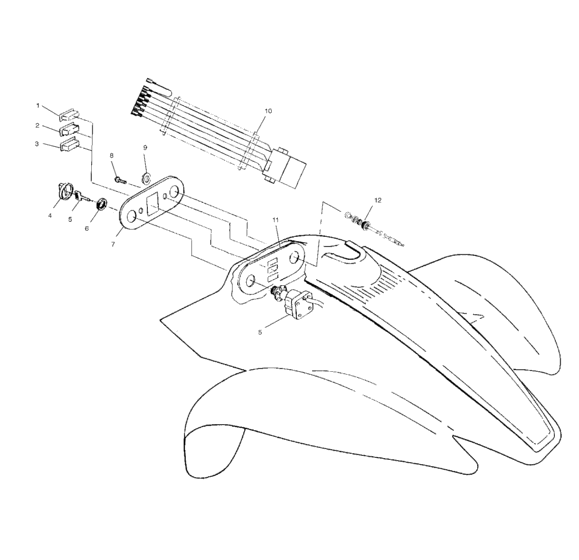

Control panel (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430967 Plug,indic,hole |
5430967 |
US $3.64 |
||
|
2
|
2
4040054 Indic"neut,/rev," |
4040054 |
US $25.43 |
||
|
3
|
3
4040053 Indic"hot temperature" |
4040053 |
US $34.46 |
||
|
4
|
4
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
5
|
5
4110264
Switch, ignition
Incl. Key; |
4110264 |
— | ||
|
5
|
5
4010278 Key blank (20/21/67/68) series6700&6800 SERIES; |
4010278 |
US $12.81 |
||
|
5
|
5
4010321 Key blank (22/23/27/28) series2700&2800 SERIES; |
4010321 |
US $14.77 |
||
|
6
|
6
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
7
|
7
5433844 Panel,control,outerIf built before 5/08/00; |
5433844 |
US $21.49 |
||
|
7
|
7
5431976
Panel,control,outer
If built after 5/08/00; |
5431976 |
— | ||
|
8
|
8
7512026
Screw
10; |
7512026 |
— | ||
|
9
|
9
7080922 Nut,choke,m24x1,5 thd,m29 hex |
7080922 |
US $4.73 |
||
|
10
|
10
2460723
Harness-indicator,scr 500,con
|
2460723 |
— | ||
|
11
|
11
5433845 Panel,control,inner |
5433845 |
US $21.49 |
||
|
12
|
12
7080920
Cable-choke,friction,w/adj,26"
If built before 10/30/00; |
7080920 |
— | ||
| replacement | |||||
|
12
|
12
7081007
Cable, choke
If built before 10/30/00; |
7081007 |
— | ||
|
12
|
12
7081007
Cable, choke
If built after 10/30/00; |
7081007 |
— | ||
