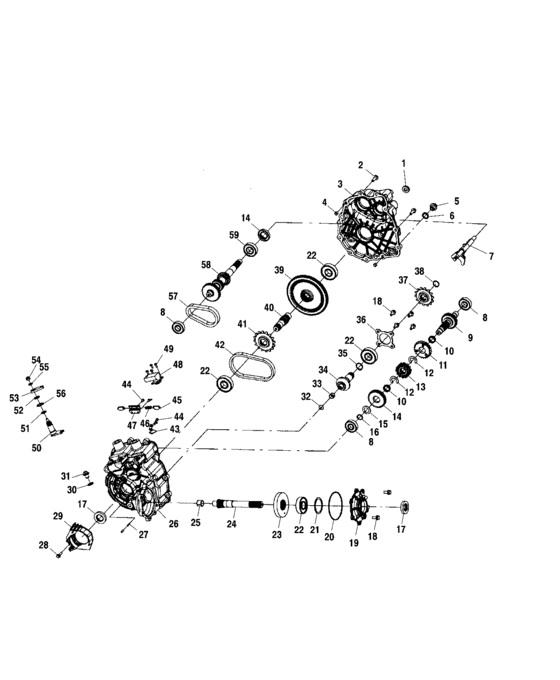

Gearcase - a01bg50aa (If Built After 4/29/01) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233527 Bushing,pivot |
3233527 |
US $18.20 |
||
|
2
|
2
3233252 Screw |
3233252 |
US $8.87 |
||
|
3
|
3
3233632
Gearcase, lh
|
3233632 |
— | ||
|
4
|
4
3233529 Pipe,knock |
3233529 |
US $8.52 |
||
|
5
|
5
3233448 Plug |
3233448 |
US $17.54 |
||
|
6
|
6
3233035 Washer |
3233035 |
US $4.53 |
||
|
7
|
7
3233633 Fork,shift,high/rev |
3233633 |
US $142.80 |
||
|
8
|
8
3233018 Bearing |
3233018 |
US $29.54 |
||
|
9
|
9
3233728 Shaft,reverse,31t |
3233728 |
US $142.80 |
||
|
10
|
10
3233718 Bearing,ndl,split cage |
3233718 |
US $38.41 |
||
|
11
|
11
3233719 Sprocket,24t |
3233719 |
US $112.28 |
||
|
12
|
12
3233720 Ring,ret-ring,external |
3233720 |
US $7.68 |
||
|
13
|
13
3233721 Dog,engagement,high/rev |
3233721 |
US $173.32 |
||
|
14
|
14
3233722 Gear,30t |
3233722 |
US $168.40 |
||
|
15
|
15
3233176 Washer |
3233176 |
US $7.68 |
||
|
16
|
16
3233177 Ring,retaining |
3233177 |
US $3.75 |
||
|
17
|
17
3233788 Seal-triple lip |
3233788 |
US $30.10 |
||
|
18
|
18
3233539 Screw |
3233539 |
US $14.09 |
||
|
19
|
19
3233556 Cover,snorkel |
3233556 |
US $38.61 |
||
|
20
|
20
3233555 O-ring |
3233555 |
US $7.09 |
||
|
21
|
21
3233554 Shim |
3233554 |
US $14.28 |
||
|
22
|
22
3233020 Bearing |
3233020 |
US $54.18 |
||
|
23
|
23
3233898 Gear-25t |
3233898 |
US $284.62 |
||
|
24
|
24
3233899
Shaft-snorkel
|
3233899 |
— | ||
|
25
|
25
3233552 Bushing,garlock |
3233552 |
US $21.49 |
||
|
26
|
26
3233896 Gearcase-rh,hr * |
3233896 |
US $489.41 |
||
|
27
|
27
3233037 Vent |
3233037 |
US $6.41 |
||
|
28
|
28
3233026 Screw |
3233026 |
US $2.98 |
||
|
29
|
29
3233897 Guide-chain |
3233897 |
US $19.30 |
||
|
30
|
30
3233324 Washer |
3233324 |
US $3.26 |
||
|
31
|
31
3233711 Plug,oil fill |
3233711 |
US $20.69 |
||
|
32
|
32
3233542 Washer,thrust |
3233542 |
US $7.68 |
||
|
33
|
33
3233541 Bushing,garlock |
3233541 |
US $30.19 |
||
|
34
|
34
3233540 Shaft,pinion,13t |
3233540 |
US $196.95 |
||
|
35
|
35
3233306 Ring,retaining |
3233306 |
US $2.45 |
||
|
36
|
36
3233263 Cover-bearing |
3233263 |
US $12.20 |
||
|
37
|
37
3233538 Sprocket,14/22t |
3233538 |
US $65.99 |
||
|
38
|
38
3233537 Ring,retaining |
3233537 |
US $3.57 |
||
|
39
|
39
3233558 Gear,98t,hcr, |
3233558 |
US $262.96 |
||
|
40
|
40
3233544 Shaft,output |
3233544 |
US $210.14 |
||
|
41
|
41
3233545 Sprocket,16/26t |
3233545 |
US $61.06 |
||
|
42
|
42
3233546 Chain,roller |
3233546 |
US $65.99 |
||
|
43
|
43
3233043 Deflector,oil |
3233043 |
US $16.24 |
||
|
44
|
44
3233747 Screw-tapping,w/lock washer |
3233747 |
US $2.45 |
||
|
45
|
45
3233308 Pin,interlock |
3233308 |
US $20.69 |
||
|
46
|
46
3233550 Spring,shift,interlock |
3233550 |
US $12.20 |
||
|
47
|
47
3233309 Bracket,interlock |
3233309 |
US $25.43 |
||
|
48
|
48
3233635
Switch, 3 position
|
3233635 |
— | ||
|
49
|
49
3233749 Screw |
3233749 |
US $2.45 |
||
|
50
|
50
3233549 Shaft,shift |
3233549 |
US $73.87 |
||
|
51
|
51
3233548 O-ring |
3233548 |
US $14.58 |
||
|
52
|
52
3233045 Ring,retaining |
3233045 |
US $3.26 |
||
|
53
|
53
3233547 Bellcrank |
3233547 |
US $28.58 |
||
|
54
|
54
3233055
Nut
|
3233055 |
— | ||
|
55
|
55
3233054 Washer |
3233054 |
US $3.26 |
||
|
56
|
56
3233040 Washer |
3233040 |
US $7.68 |
||
|
57
|
57
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
58
|
58
3233536 Shaft,input,hi/rev,hcr,ext, |
3233536 |
US $289.52 |
||
|
59
|
59
3233019 Bearing |
3233019 |
US $39.38 |
