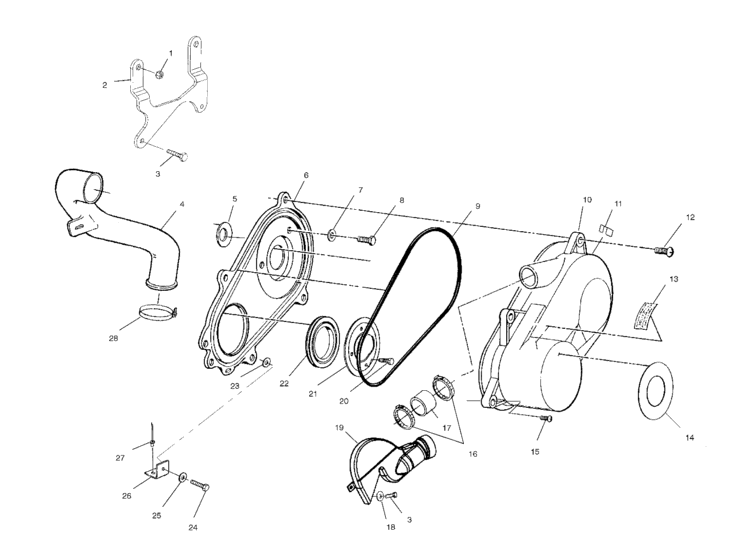

Clutch cover (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547067 Nutsert,hex |
7547067 |
US $7.68 |
||
|
2
|
2
5242208-067
Brkt,clutch,low,blk
|
5242208-067 |
— | ||
|
3
|
3
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
4
|
4
5432698
Duct, down tube, inlet
|
5432698 |
— | ||
|
5
|
5
5411553 Seal,cvr,inner |
5411553 |
US $13.79 |
||
|
6
|
6
2201160 Cover,clutch,inner,500,svc,kitIncl. 12,15,24; |
2201160 |
US $117.20 |
||
|
7
|
7
7555748 Washer10;If built before 4/03/00; |
7555748 |
US $2.45 |
||
|
8
|
8
7512278 Bolt10;If built before 4/03/00; |
7512278 |
US $2.98 |
||
|
8
|
8
7517860
Bolt/rbr washer 1/4-20x1,asm,
10;If built after 4/03/00; |
7517860 |
— | ||
|
9
|
9
5521301 Seal,outer,clutch cover |
5521301 |
US $23.64 |
||
|
10
|
10
5433540 Cover-clutch,outer,rtp |
5433540 |
US $182.19 |
||
|
11
|
11
7670051 Clip,clutch cover(10)10; |
7670051 |
US $1.89 |
||
|
12
|
12
7512093 Screw(10)10; |
7512093 |
US $1.49 |
||
|
13
|
13
7078689
Decal, warning, clutch cover
|
7078689 |
— | ||
|
14
|
14
7074782
Decal,auto,transmission
|
7074782 |
— | ||
|
15
|
15
7512094 Screw(10) *10; |
7512094 |
US $39.40 |
||
|
16
|
16
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
17
|
17
5411489 Boot,duct,hi-flow |
5411489 |
US $10.85 |
||
|
18
|
18
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
19
|
19
5433409
Duct,clutch out,hi-flow,13-6
If built before 10/15/00; |
5433409 |
— | ||
| replacement | |||||
|
19
|
19
5434160 Duct-clutch,out,hi-flow,13,6If built before 10/15/00; |
5434160 |
US $78.77 |
||
|
19
|
19
5434160 Duct-clutch,out,hi-flow,13,6If built after 10/15/00; |
5434160 |
US $78.77 |
||
|
21
|
21
5240409-067
Brkt,retainer seal,blk.
|
5240409-067 |
— | ||
| replacement | |||||
|
21
|
21
5242046-067
Bracket, clutch seal
|
5242046-067 |
— | ||
|
22
|
22
5410575
Seal, cover case
|
5410575 |
— | ||
|
23
|
23
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
24
|
24
7512098 Screw (10) * |
7512098 |
US $1.89 |
||
|
25
|
25
7555935 Washer10; |
7555935 |
US $3.26 |
||
|
26
|
26
5242693-067
Bracket, clutch cover, front
|
5242693-067 |
— | ||
|
27
|
27
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
28
|
28
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
