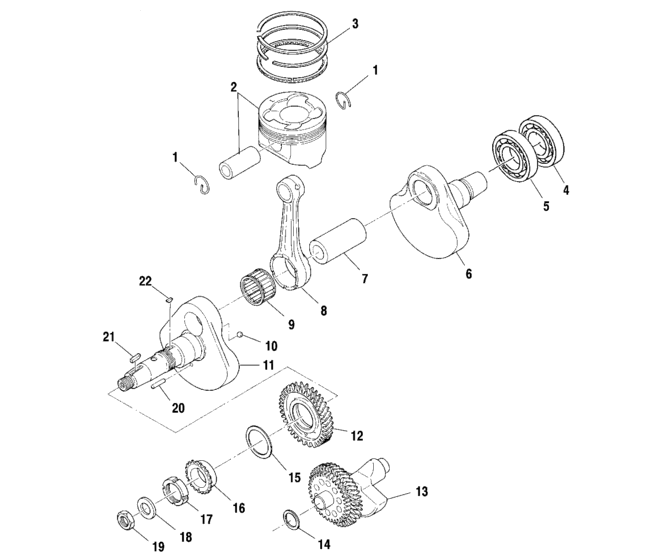

Crankshaft and piston (A01BG50(AA)(AB)) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3085534 Clip(2)10; |
3085534 |
from US $3.20 |
||
|
2
|
2
3085866
Piston set
STD;Std;Incl. 1; |
3085866 |
— | ||
|
2
|
2
3085867
Piston,set
.25 O/S;0.25 O/S;Incl. 1; |
3085867 |
— | ||
|
2
|
2
3085868
Piston,set
.50 0/S;0.50 O/S;Incl. 1; |
3085868 |
— | ||
|
3
|
3
3085379
Ring set, *
STD;Std; |
3085379 |
— | ||
| replacement | |||||
|
3
|
3
3087224 Set,piston,ring,standard *STD;Std; |
3087224 |
US $88.57 |
||
|
3
|
3
3085380
Ring set
.25MM/.010 OS;0.25 O/S; |
3085380 |
— | ||
|
3
|
3
3085381
Ring set
.50MM/.020 OS;0.50 O/S; |
3085381 |
— | ||
|
4
|
4
3080676 Bearing, ball |
3080676 |
US $51.17 |
||
|
5
|
5
3085815 Bearing,ball |
3085815 |
US $54.15 |
||
|
6
|
6
3085812 Crankshaft,#2 |
3085812 |
US $630.26 |
||
|
7
|
7
3085341
Pin, crank
|
3085341 |
— | ||
|
8
|
8
3085813
Rod,connecting
|
3085813 |
— | ||
|
9
|
9
3085400 Bearing,large end |
3085400 |
US $97.44 |
||
| replacement | |||||
|
9
|
9
3085343
Bearing, end, large
|
3085343 |
— | ||
|
10
|
10
3085024 Ball, steel |
3085024 |
US $7.91 |
||
|
11
|
11
3085861
Asm., crankshaft
Incl. 4,5-12,20; |
3085861 |
— | ||
|
11
|
11
3085945
Crankshaft 1
|
3085945 |
— | ||
|
12
|
12
3085852
Gear,balancer #1 *
|
3085852 |
— | ||
|
13
|
13
3086837
Shaft,balancer *
|
3086837 |
— | ||
|
14
|
14
3084895 Spacer,0,80.8; |
3084895 |
US $4.94 |
||
|
14
|
14
3084896 Spacer,1,01.0; |
3084896 |
US $4.94 |
||
|
14
|
14
3084897 Spacer,1,21.2; |
3084897 |
US $4.94 |
||
|
15
|
15
3240088 Spacer,0,60.6; |
3240088 |
US $9.91 |
||
|
15
|
15
3084892 Spacer,0,80.8; |
3084892 |
US $11.25 |
||
|
15
|
15
3084893 Spacer,1,01.0; |
3084893 |
US $16.24 |
||
|
15
|
15
3084894 Spacer,1,21.2; |
3084894 |
US $16.24 |
||
|
16
|
16
3084882
Sprocket 1
|
3084882 |
— | ||
|
17
|
17
3085528 Nut,slit |
3085528 |
US $28.07 |
||
|
18
|
18
3083904
Washer
|
3083904 |
— | ||
| replacement | |||||
|
18
|
18
3086767
Washer
|
3086767 |
— | ||
|
19
|
19
3083905
Nut,lock
|
3083905 |
— | ||
|
20
|
20
3085346
Pin, dowel
|
3085346 |
— | ||
|
21
|
21
3081447 Key |
3081447 |
US $28.80 |
||
|
22
|
22
3240168 Key, woodruff,(10)10; |
3240168 |
US $147.70 |
||
