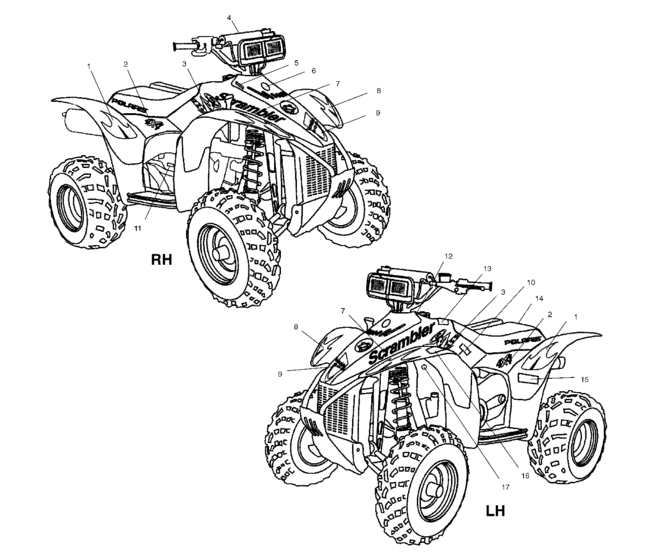

Decals (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7079612
Decal-fender,rear,lh
AB Only; |
7079612 |
— | ||
|
1
|
1
7079613
Decal-fender,rear,rh
AB Only; |
7079613 |
— | ||
|
2
|
2
7078433 Decal-"4x4 cds",lhAA; |
7078433 |
US $7.09 |
||
|
2
|
2
7078434
Decal-"4x4 cds",rh
AA; |
7078434 |
— | ||
|
2
|
2
7079614
Decal-side panel,"4x4",lh
AB; |
7079614 |
— | ||
|
2
|
2
7079615
Decal-side panel,"4x4",rh
AB; |
7079615 |
— | ||
|
3
|
3
7077801
Decal-tank side,lh
AA; |
7077801 |
— | ||
|
3
|
3
7077802
Decal-tank side,rh
AA; |
7077802 |
— | ||
|
3
|
3
7079608
Decal-tank side,lh
AB; |
7079608 |
— | ||
|
3
|
3
7079609
Decal-tank side,rh
AB; |
7079609 |
— | ||
|
4
|
4
7078020
Decal,"polaris"
|
7078020 |
— | ||
|
5
|
5
7074935
Decal - warning, awd switch
|
7074935 |
— | ||
|
6
|
6
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
7
|
7
7078430 Decal-"scrambler"AA; |
7078430 |
US $41.76 |
||
|
7
|
7
7079606
Decal-"scrambler"
AB; |
7079606 |
— | ||
|
8
|
8
7079610
Decal-fender,front,lh
AB Only; |
7079610 |
— | ||
|
8
|
8
7079611
Decal-fender,front,rh
AB Only; |
7079611 |
— | ||
|
9
|
9
7078435
Decal-fr cvr,"500 l/c,4stroke"
AA; |
7078435 |
— | ||
|
9
|
9
7079607
Decal-"500",front cover
AB; |
7079607 |
— | ||
|
10
|
10
7079085
Decal, warning, discretionary
|
7079085 |
— | ||
|
11
|
11
7078577
Decal,drain recoil
|
7078577 |
— | ||
|
12
|
12
7079604
Decal, warning, override, awd
|
7079604 |
— | ||
|
13
|
13
7078253
Decal, age warning
|
7078253 |
— | ||
|
14
|
14
7077920
Decal, passenger warning
|
7077920 |
— | ||
|
15
|
15
7079088
Decal, tire pressure/load
|
7079088 |
— | ||
|
16
|
16
7079083
Decal, warning, general
|
7079083 |
— | ||
|
17
|
17
7077365
Decal,fuel lever
|
7077365 |
— |
