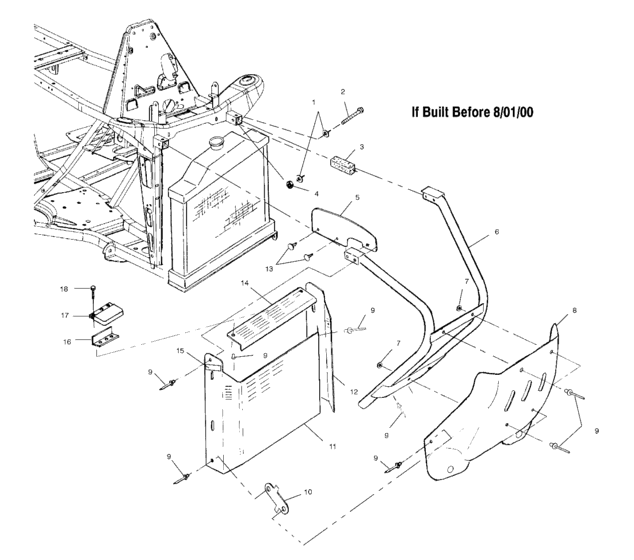

Front bumper and shields (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
2
|
2
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
3
|
3
5811675 Plug,frame,foam |
5811675 |
US $4.15 |
||
|
4
|
4
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
5
|
5
5850141 Shield,rh,deflectorIf built before 10/30/00; |
5850141 |
US $12.20 |
||
|
6
|
6
1012773-067 Bumper,fr,gen 3,blk, |
1012773-067 |
US $228.94 |
||
|
7
|
7
7555857
Washer, flat
No Longer Available; |
7555857 |
— | ||
|
8
|
8
5432378-070 Plate,skid,bumper,blk |
5432378-070 |
US $76.81 |
||
|
9
|
9
7661121 Rivet-1/4"multigrip,,08-,35,b (50; |
7661121 |
US $1.89 |
||
|
10
|
10
5242694-067
Bracket, radiator shield
|
5242694-067 |
— | ||
|
11
|
11
5242997-067
Shield,rh,rad.side,blk.
|
5242997-067 |
— | ||
| replacement | |||||
|
11
|
11
5245343-067
Shield, radiator, side, rh
|
5245343-067 |
— | ||
|
12
|
12
5242996-067
Shield,lh,rad.side,blk.
|
5242996-067 |
— | ||
| replacement | |||||
|
12
|
12
5245342-067 Shield-radiator side,lh,st,blk |
5245342-067 |
US $46.87 |
||
|
13
|
13
7670088 Clip,plastic dart,nylon10; |
7670088 |
US $2.45 |
||
|
14
|
14
5242683-067
Shield,upper radiator,blk
|
5242683-067 |
— | ||
| replacement | |||||
|
14
|
14
5245344-067
Shield-upper radiator,st,blk
|
5245344-067 |
— | ||
|
15
|
15
2670134 Asm,,reflector,amber |
2670134 |
US $10.83 |
||
|
16
|
16
5131036
Heatsink rect,
|
5131036 |
— | ||
|
17
|
17
4060173
Rectifier,full wave
|
4060173 |
— | ||
| replacement | |||||
|
17
|
17
2203636 Kit,rect-reg,rplc 4060173 |
2203636 |
US $190.24 |
||
|
18
|
18
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
