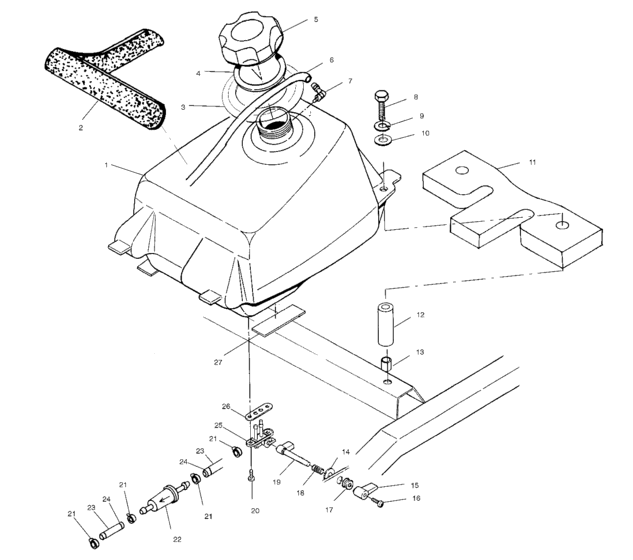

Fuel tank (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2511342
Tank asm,fuel
Incl. 7,20,25,26;If built before 10/30/00; |
2511342 |
— | ||
|
1
|
1
2520241
Asm,-fuel tank w/ valve
Item NotAvailable; Incl. 7,20,25,26;If built after 10/30/00; |
2520241 |
— | ||
|
1
|
1
5432879
Tank, fuel
|
5432879 |
— | ||
|
2
|
2
5811527 Seal,foam |
5811527 |
US $13.79 |
||
|
3
|
3
5410842
Grommet,fueltank
|
5410842 |
— | ||
|
4
|
4
5812123 Gasket |
5812123 |
US $10.03 |
||
|
5
|
5
5433687 Cap,gas tank |
5433687 |
US $24.08 |
||
|
6
|
6
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
7
|
7
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
8
|
8
7512249 Bolt10; |
7512249 |
US $2.45 |
||
|
9
|
9
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
10
|
10
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
11
|
11
5811526 Seal,foam |
5811526 |
US $20.69 |
||
|
12
|
12
5332457 Spacer |
5332457 |
US $12.11 |
||
|
13
|
13
7547067 Nutsert,hex |
7547067 |
US $7.68 |
||
|
14
|
14
7555726 Washer10; |
7555726 |
US $6.56 |
||
|
15
|
15
5431021 Lever, fuel |
5431021 |
US $5.25 |
||
|
16
|
16
7511840 Screw(10)10; |
7511840 |
US $0.79 |
||
|
17
|
17
5432291 Grommet |
5432291 |
US $2.98 |
||
|
18
|
18
7041209 Spring,lever,compress, |
7041209 |
US $9.26 |
||
|
19
|
19
5431391 Ext,,fuel lever |
5431391 |
US $9.19 |
||
|
20
|
20
7515136 Screw(10) *10; |
7515136 |
US $1.89 |
||
|
21
|
21
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
22
|
22
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
23
|
23
8450080-27
Sheath, foil, laminated
|
8450080-27 |
— | ||
| replacement | |||||
|
23
|
23
8450080-65
Sheath, foil
|
8450080-65 |
— | ||
|
24
|
24
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
25
|
25
7052190 Valve,fuel,magnumIf built before 10/15/00; |
7052190 |
US $40.58 |
||
|
25
|
25
7051006 Valve asm, fuelIf built after 10/15/00; |
7051006 |
US $49.25 |
||
|
26
|
26
5810859 Gasket, fuel valve |
5810859 |
US $3.75 |
||
|
27
|
27
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
27
|
27
8360026
Pad,bulk fuel
|
8360026 |
— | ||
