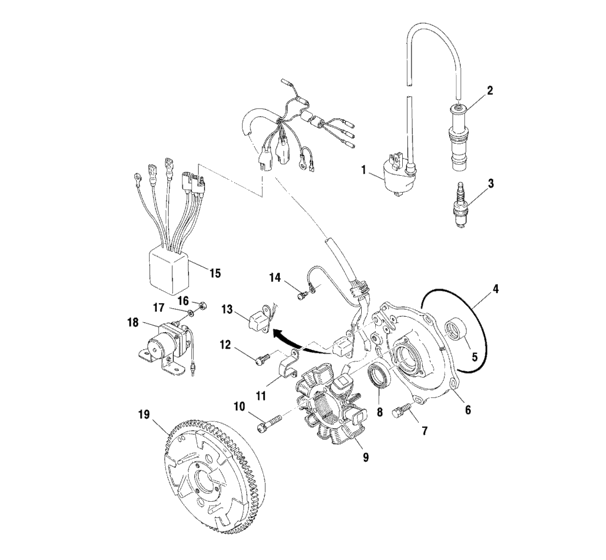

Magneto (A01BG50(AA)(AB)) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084690
Coil asm,ignition
Incl. 1,2; |
3084690 |
— | ||
|
1
|
1
3084979
Coil,ignition
|
3084979 |
— | ||
|
2
|
2
3084980 Cap, sparkplug * |
3084980 |
US $67.25 |
||
|
3
|
3
3084997
Plug, spark
10; |
3084997 |
— | ||
| replacement | |||||
|
3
|
3
3070172 Spark plug,bkr6e (4)10; |
3070172 |
US $3.50 |
||
|
4
|
4
3084978 O-ring |
3084978 |
US $24.43 |
||
|
5
|
5
3084972 Bearing, metal |
3084972 |
US $23.64 |
||
|
6
|
6
3086980
Asm-plate
Incl. 5,6,8-12,14; |
3086980 |
— | ||
|
6
|
6
3086981
Plate
|
3086981 |
— | ||
|
7
|
7
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
8
|
8
3084973 Seal, oil |
3084973 |
US $35.12 |
||
|
9
|
9
3086984 Stator *Incl. 13; |
3086984 |
US $730.70 |
||
|
10
|
10
3086985
Asm,, screw and washer
|
3086985 |
— | ||
|
11
|
11
3085554
Band, pulse
|
3085554 |
— | ||
|
12
|
12
3084976 Screw&washer asm, |
3084976 |
US $2.98 |
||
|
13
|
13
3085360 Coil,pulser * |
3085360 |
US $118.06 |
||
|
14
|
14
3081256 Screw&washer asm(10)10; |
3081256 |
US $1.49 |
||
|
15
|
15
3086982
Cdi-system
|
3086982 |
— | ||
|
16
|
16
3083073 Nut |
3083073 |
US $0.79 |
||
|
17
|
17
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
18
|
18
3085521
Switch, magnetic
|
3085521 |
— | ||
| replacement | |||||
|
18
|
18
4011335 Switch-magnetic |
4011335 |
US $70.26 |
||
|
19
|
19
3086983
Flywheel-w/ring gear
|
3086983 |
— | ||
