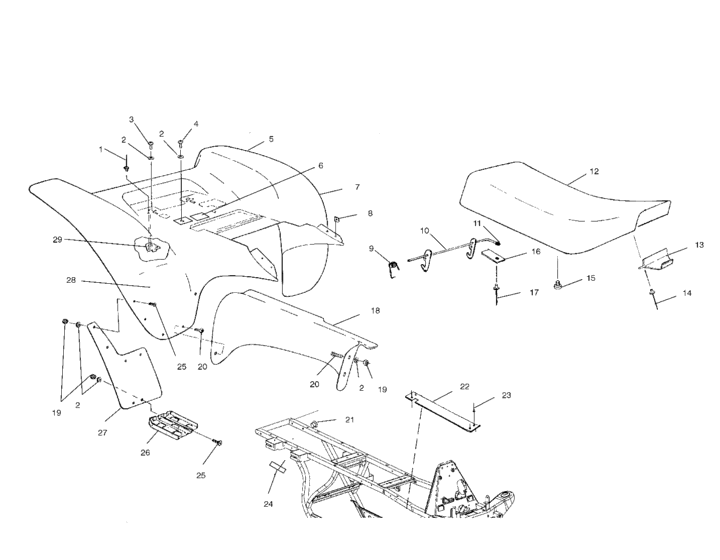

Rear cab (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7621472 Rivet(50) *50; |
7621472 |
US $98 |
||
|
2
|
2
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
3
|
3
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
4
|
4
7512242 Screw(10)10; |
7512242 |
US $0.79 |
||
|
5
|
5
5810991 Foil,small |
5810991 |
US $9.15 |
||
|
6
|
6
7079902
Decal,carb/filter info
|
7079902 |
— | ||
|
7
|
7
5432820-288
Cab-rear,gen iii,blazing red
AA;If built before 11/16/00; |
5432820-288 |
— | ||
| replacement | |||||
|
7
|
7
5434014-288
Cab, rear, blazing red
AA;If built before 11/16/00; |
5434014-288 |
— | ||
|
7
|
7
5434014-288
Cab, rear, blazing red
AA;If built after 11/16/00; |
5434014-288 |
— | ||
|
7
|
7
5432820-216
Cab,rear,gen iii,scr yellow
AB;If built before 10/17/00; |
5432820-216 |
— | ||
| replacement | |||||
|
7
|
7
5434014-216
Cab-rear,gen 3,scr yellow
AB;If built before 10/17/00; |
5434014-216 |
— | ||
|
7
|
7
5434014-216
Cab-rear,gen 3,scr yellow
AB;If built after 10/17/00; |
5434014-216 |
— | ||
|
8
|
8
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
9
|
9
7041607
Spring,latch,light
|
7041607 |
— | ||
|
10
|
10
1040412 Latch, seatback |
1040412 |
US $37.63 |
||
|
11
|
11
5411392
Cap,seatlatch
|
5411392 |
— | ||
|
12
|
12
2682453-070
Seat, black
|
2682453-070 |
— | ||
|
12
|
12
2681769-070
Cover,seat,blk,
|
2681769-070 |
— | ||
|
13
|
13
5431986 Tongue,seat |
5431986 |
US $8.17 |
||
|
14
|
14
7621479 Rivet(50)50; |
7621479 |
US $2.45 |
||
|
15
|
15
5412067 Bumper-rubber10; |
5412067 |
US $2.98 |
||
|
16
|
16
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
17
|
17
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
18
|
18
2632274
Shield,muffler/foil asm,gen3
|
2632274 |
— | ||
|
18
|
18
5811113 Foil,foam |
5811113 |
US $67.13 |
||
|
19
|
19
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
20
|
20
7517264 Screw (10) |
7517264 |
US $1.89 |
||
|
21
|
21
5432831 Plug,endcap,ribbed |
5432831 |
US $3.75 |
||
|
22
|
22
5241403-067
Guard, clutch
|
5241403-067 |
— | ||
|
23
|
23
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
24
|
24
2670133 Reflector asm,red |
2670133 |
US $9.45 |
||
|
25
|
25
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
27
|
27
5812134 Mudflap-rear,lh |
5812134 |
US $27.39 |
||
|
27
|
27
5850148
Mudflap,rh,r,hybrid
|
5850148 |
— | ||
|
28
|
28
5810957 Foil |
5810957 |
US $28.58 |
||
|
29
|
29
5220880 Brkt,rear holddownUse with 5432820-288; |
5220880 |
US $7.09 |
||
|
29
|
29
5245248
Brkt-rear seat,holddown (use with 5434014-288
|
5245248 |
— | ||
