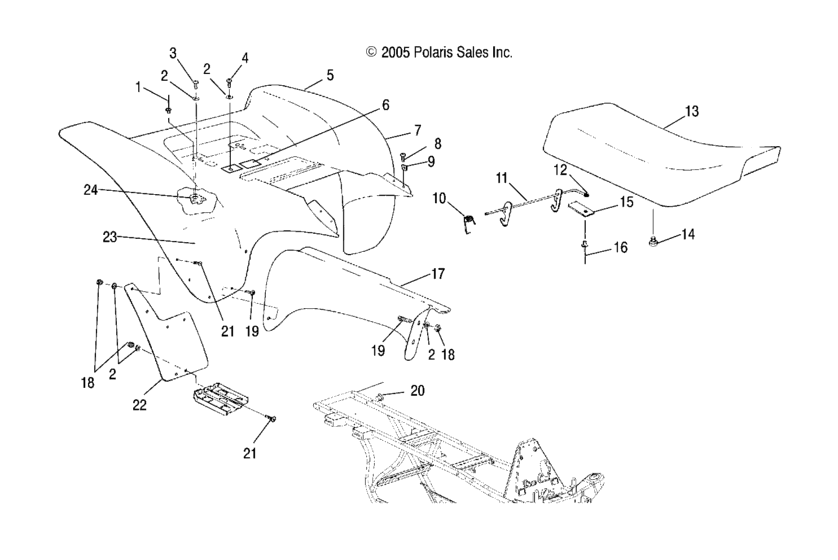

Cab, rear (A06BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A06BG50AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7621472 Rivet(50) * |
7621472 |
US $98 |
||
|
2
|
2
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
3
|
3
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
4
|
4
7512242 Screw(10) |
7512242 |
US $0.79 |
||
|
5
|
5
5810991 Foil,small |
5810991 |
US $9.15 |
||
|
6
|
6
7079902
Decal,carb/filter info
|
7079902 |
— | ||
|
7
|
7
5430007-496
Cab-rear,cosmic so nonmet
|
5430007-496 |
— | ||
|
8
|
8
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
9
|
9
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
10
|
10
7041607
Spring,latch,light
|
7041607 |
— | ||
|
11
|
11
1040412 Latch, seatback |
1040412 |
US $37.63 |
||
|
12
|
12
5411392
Cap,seatlatch
|
5411392 |
— | ||
|
13
|
13
2683329-070 Asm-seat,blk w/white polaris |
2683329-070 |
US $657.34 |
||
|
13
|
13
2683328-070
Cover, seat, black
|
2683328-070 |
— | ||
|
14
|
14
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
15
|
15
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
16
|
16
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
17
|
17
2632280
Asm,,shield muffler/foil
|
2632280 |
— | ||
|
17
|
17
5811230 Foil |
5811230 |
US $37.89 |
||
|
18
|
18
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
19
|
19
7517264 Screw (10) |
7517264 |
US $1.89 |
||
|
20
|
20
5432831 Plug,endcap,ribbed |
5432831 |
US $3.75 |
||
|
21
|
21
7512282 Bolt, black(10) |
7512282 |
US $1.89 |
||
|
22
|
22
5812134 Mudflap-rear,lh |
5812134 |
US $27.39 |
||
|
22
|
22
5812543 Mudflap-rear,rh |
5812543 |
US $27.39 |
||
|
23
|
23
5810957 Foil |
5810957 |
US $28.58 |
||
|
24
|
24
5220880 Brkt,rear holddown |
5220880 |
US $7.09 |
