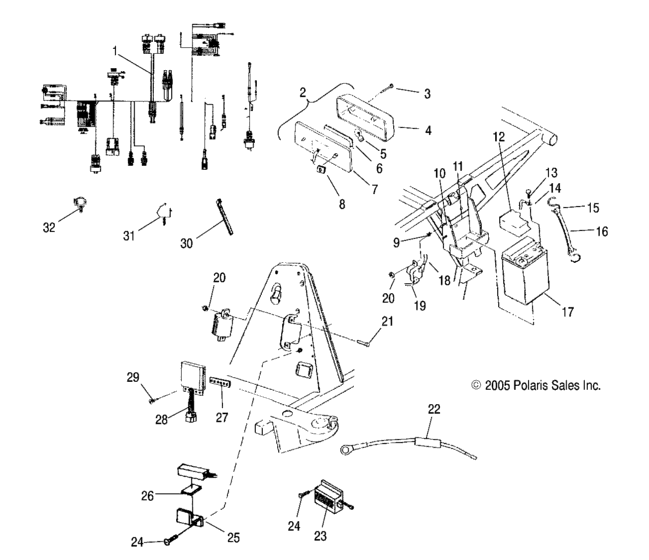

Electrical/taillight (A06BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A06BG50AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410505 Harness-mainIncl. Fuse Link Kit 2202147; |
2410505 |
US $672.11 |
||
|
2
|
2
2410319 Asm-taillight,12v,series filIncl. 3-7;AA; |
2410319 |
US $76.81 |
||
|
3
|
3
7512088 Screw |
7512088 |
US $2.98 |
||
|
4
|
4
4032085 Lens,stop&t/l, |
4032085 |
US $24.43 |
||
|
5
|
5
4030043 Bulb |
4030043 |
US $4.94 |
||
|
6
|
6
4032086 Gasket,t/l&stop/l |
4032086 |
US $7.09 |
||
|
7
|
7
4032087 Backing,(stop&tail) |
4032087 |
US $9.15 |
||
|
8
|
8
7670093 Clip, retainer(10) |
7670093 |
US $3.75 |
||
|
9
|
9
7571602 Washer |
7571602 |
US $2.45 |
||
|
10
|
10
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
|
11
|
11
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
12
|
12
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
13
|
13
2202848 Kit-battery bolt |
2202848 |
US $2.82 |
||
|
14
|
14
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
15
|
15
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
16
|
16
5412499 Strap-battery hold down-c |
5412499 |
US $2.17 |
||
|
17
|
17
4011138
Battery-sealed,14ah,etx15
AA; |
4011138 |
— | ||
|
17
|
17
4140006 BatteryFA; |
4140006 |
US $275.60 |
||
|
18
|
18
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
19
|
19
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
20
|
20
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
21
|
21
7512007 Bolt |
7512007 |
US $2.45 |
||
|
22
|
22
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
23
|
23
4011110
Controller, module
|
4011110 |
— | ||
| replacement | |||||
|
23
|
23
2203348 Kit-surepower ecm 400\450\500 |
2203348 |
US $236.23 |
||
|
24
|
24
7512024 Screw |
7512024 |
US $2.45 |
||
|
25
|
25
5246747 Brkt-cdi,digital,long |
5246747 |
US $4.94 |
||
|
26
|
26
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
26
|
26
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
27
|
27
5210650
Heat sink
|
5210650 |
— | ||
|
28
|
28
4010994 Limiter-rpm,hub ground,w/con |
4010994 |
US $183.17 |
||
|
29
|
29
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
30
|
30
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
31
|
31
7670109 Clip-routing |
7670109 |
US $3.75 |
||
|
32
|
32
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
