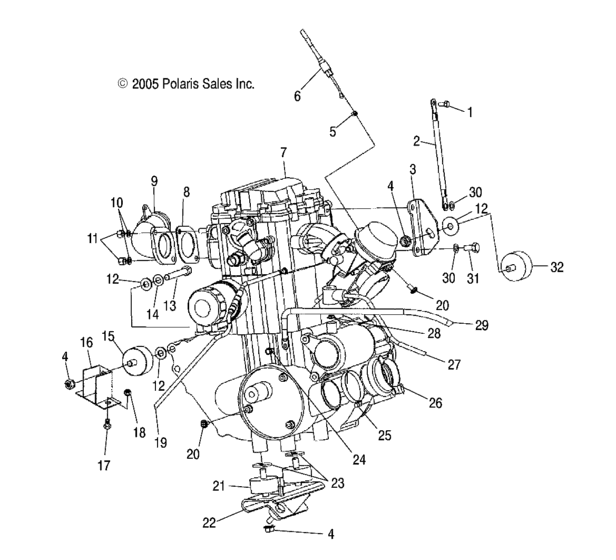

Engine mounting (A06BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A06BG50AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
2
|
2
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
3
|
3
5242674 Bracket, engine mount, top |
5242674 |
US $4.34 |
||
|
4
|
4
7547108 Nut |
7547108 |
US $2.98 |
||
|
5
|
5
3084696 Guide, cable |
3084696 |
US $9.15 |
||
|
6
|
6
7081170
Cable, throttle
|
7081170 |
— | ||
|
7
|
7
1203118
Engine, short block, eh500ple125
NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required; |
1203118 |
— | ||
|
8
|
8
3085075 Asm,,gasket(exhaust) |
3085075 |
US $50.19 |
||
|
9
|
9
1261171-029
Manifold, black
|
1261171-029 |
— | ||
|
10
|
10
3080051
Washer, spring
|
3080051 |
— | ||
| replacement | |||||
|
10
|
10
3080530 Washer, spring lock |
3080530 |
US $1.89 |
||
|
11
|
11
3087199 Nut |
3087199 |
US $1.49 |
||
|
12
|
12
7555823 Washer |
7555823 |
US $6.56 |
||
|
13
|
13
7515417 Screw |
7515417 |
US $3.94 |
||
|
14
|
14
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
15
|
15
3110067
Mount,motor
|
3110067 |
— | ||
|
16
|
16
1040688-067 Mount,fr,engine,blk, |
1040688-067 |
US $17.24 |
||
|
17
|
17
7515398 Screw |
7515398 |
US $3.75 |
||
|
18
|
18
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
19
|
19
7081177 Cable-choke,friction,26" |
7081177 |
US $31.52 |
||
|
20
|
20
3084205 Asm,,screw & washer(10) |
3084205 |
US $5.04 |
||
|
21
|
21
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
22
|
22
1014993-067 Mount,engine,rear,blk |
1014993-067 |
US $30.54 |
||
|
23
|
23
7555815 Washer, flat |
7555815 |
US $3.26 |
||
|
24
|
24
3082038 Bolt&washer asm, |
3082038 |
US $1.49 |
||
|
25
|
25
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
26
|
26
5412487
Boot-clutch,intake
|
5412487 |
— | ||
|
27
|
27
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
28
|
28
3083649 Nut, flange(10) |
3083649 |
US $1.89 |
||
|
29
|
29
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
30
|
30
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
31
|
31
7512315 Bolt |
7512315 |
US $2.98 |
||
|
32
|
32
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
32
|
32
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
