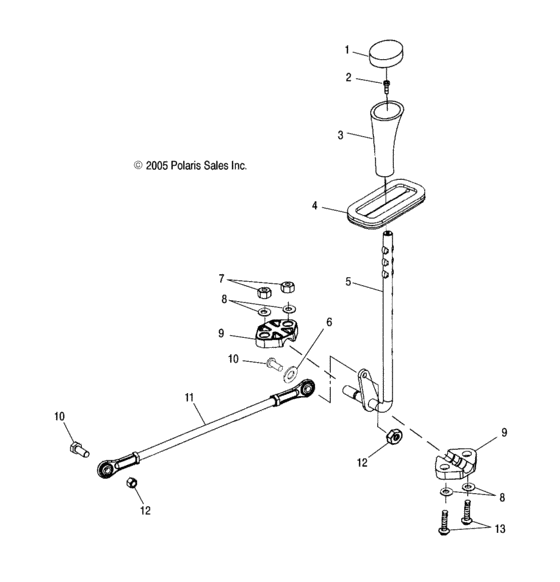

Gear selector (A06BG50AA/FA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A06BG50AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411006
Cover, shift knob
|
5411006 |
— | ||
| replacement | |||||
|
1
|
1
3233198 Knob asm,hi/rev, |
3233198 |
US $28.58 |
||
|
2
|
2
7512024 Screw |
7512024 |
US $2.45 |
||
|
3
|
3
5411007
Knob, gear selector shift
|
5411007 |
— | ||
| replacement | |||||
|
3
|
3
3233198 Knob asm,hi/rev, |
3233198 |
US $28.58 |
||
|
4
|
4
5411008
Grommet,hr shifter
|
5411008 |
— | ||
|
5
|
5
1012797-067 Gear,selector,blk |
1012797-067 |
US $61.06 |
||
|
6
|
6
7556250 Wshr-0,50x0,255x0,094-y |
7556250 |
US $2.98 |
||
|
7
|
7
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
8
|
8
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
9
|
9
5435042 Mount-gear selector |
5435042 |
US $9.19 |
||
|
10
|
10
7515175 Bolt |
7515175 |
US $3.75 |
||
|
11
|
11
1821489 Asm-shift linkage,21,19" |
1821489 |
US $81.76 |
||
|
12
|
12
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
13
|
13
7515306
Bolt
|
7515306 |
— | ||
| replacement | |||||
|
13
|
13
7515352 Screw |
7515352 |
US $2.45 |
||
