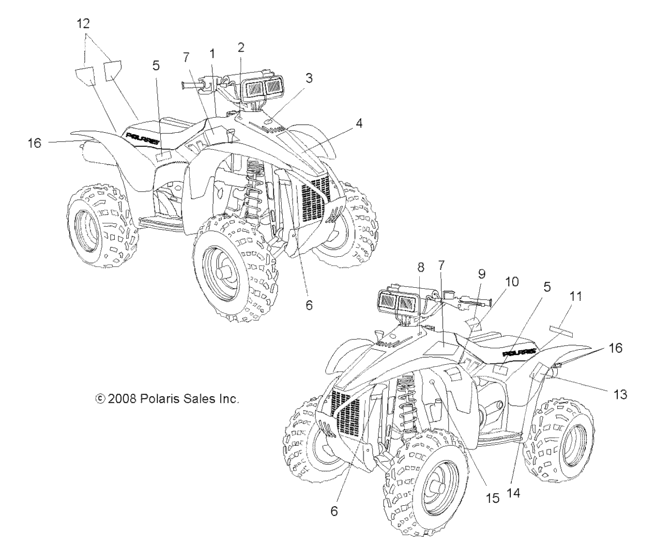

Body, decals (A09BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A09BG50AA
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7175374
Decal, age warning, 16
|
7175374 |
— | ||
|
2
|
2
7175485
Decal, caution, 4x4, awd
|
7175485 |
— | ||
|
3
|
3
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
4
|
4
7175044
Decal-fr,cover
|
7175044 |
— | ||
|
5
|
5
7175046
Decal-rr,cab,awd,rh
|
7175046 |
— | ||
|
5
|
5
7175045
Decal-rr,cab,awd,lh
|
7175045 |
— | ||
|
6
|
6
7175492
Decal, reflector, amber
|
7175492 |
— | ||
|
7
|
7
7175042
Decal-"scrambler",tank side,lh
|
7175042 |
— | ||
|
7
|
7
7175043
Decal-"scrambler",tank side,rh
|
7175043 |
— | ||
|
8
|
8
7175486
Decal, warning, override
|
7175486 |
— | ||
|
9
|
9
7175376
Decal, warning, general, 1-up
|
7175376 |
— | ||
|
10
|
10
7175511
Decal, warning, disc
|
7175511 |
— | ||
|
11
|
11
7079930
Decal-"polaris",rear,wht
|
7079930 |
— | ||
|
12
|
12
7174464
Decal-reflector,rear,red,rh
|
7174464 |
— | ||
|
12
|
12
7174463
Decal-reflector,rear,red,lh
|
7174463 |
— | ||
|
13
|
13
7175378
Decal, no passenger warning
|
7175378 |
— | ||
|
14
|
14
7175443 Decal, warning, tire/load |
7175443 |
US $12.20 |
||
|
15
|
15
7074637
Decal,fuel lever
|
7074637 |
— | ||
|
16
|
16
7174787
Decal-reflector,red
|
7174787 |
— |
