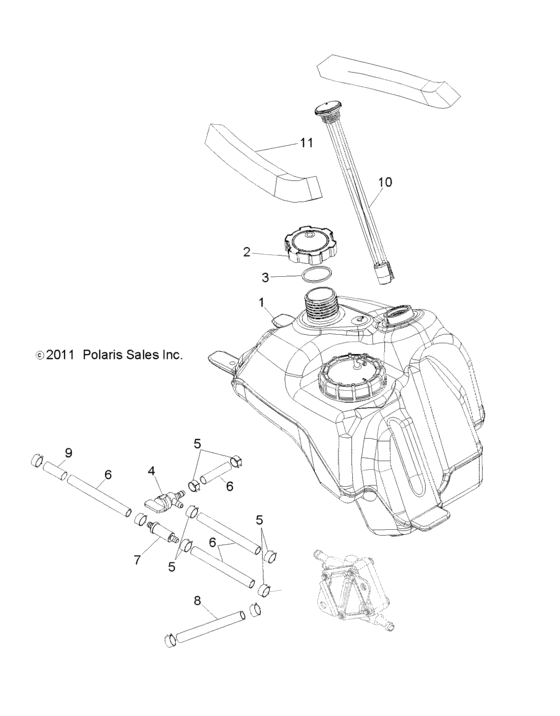

Body, Fuel System (A12NG50FA (49ATVFUEL12SCRAMI)) Diagram Polaris SCRAMBLER 500 4X4 INTL
- Model code
- A12NG50FA
- Year
- 2012
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2521034 Asm., fuel tankIncl. 10 |
2521034 |
US $426 |
||
|
2
|
2
2520957 Cap-gas,vented,unleaded w/cvrIncl. 3 |
2520957 |
US $56.14 |
||
|
3
|
3
5812123 Gasket |
5812123 |
US $10.03 |
||
|
4
|
4
7052249 Valve-fuel,plastic 90?,1/4hose |
7052249 |
US $22.45 |
||
|
5
|
5
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
6
|
6
8360052-305 Tubing,convoluted |
8360052-305 |
US $18.32 |
||
|
6
|
6
8450117-250 Fuel hose-250 cm |
8450117-250 |
US $43.72 |
||
|
7
|
7
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
8
|
8
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
9
|
9
8450105-65 Sheath-reflectsleeve,16mmx65cm |
8450105-65 |
US $61.06 |
||
|
10
|
10
3280524 Asm-fuel gauge,threaded |
3280524 |
US $35.67 |
||
|
11
|
11
5813255 Foam-seal,1,5 x 12 |
5813255 |
US $10.69 |
