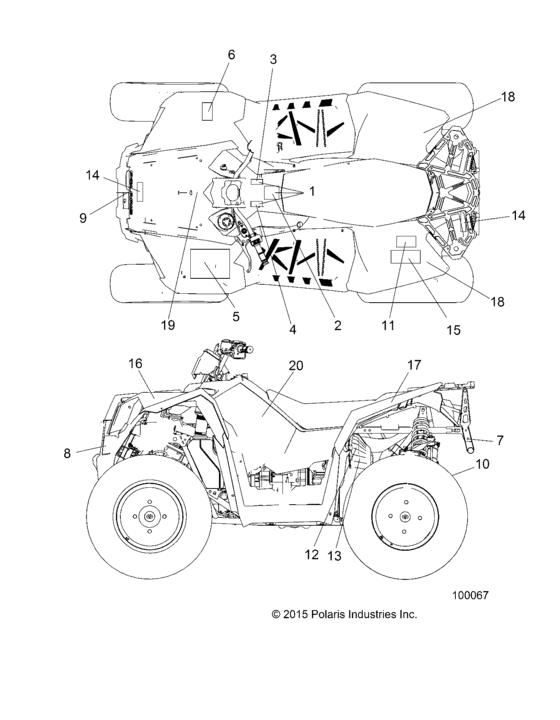

Body, Decals (A17SVA85A2 (100067)) Diagram Polaris SCRAMBLER 850
- Model code
- A17SVA85A2
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2634903 ASM-DECAL,WARN,AGE,OVERRIDEINCL. 2,3,4 |
2634903 |
US $17.10 |
||
|
2
|
2
7175374
Decal, age warning, 16
|
7175374 |
— | ||
|
3
|
3
7175485
Decal, caution, 4x4, awd
|
7175485 |
— | ||
|
4
|
4
7175486
Decal, warning, override
|
7175486 |
— | ||
|
5
|
5
7185095
Decal-Warn,general,1 Oc
|
7185095 |
— | ||
|
6
|
6
7179079 DECAL-WARN,DISC.,850 SCRAMBLER |
7179079 |
US $4.74 |
||
|
7
|
7
2636502 ASM-REFLECTOR,RED W/VHB TAPE |
2636502 |
US $7.09 |
||
|
8
|
8
2636503 ASM-REFLECTOR,AMBER W/VHB TAPE |
2636503 |
US $9.45 |
||
|
9
|
9
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
10
|
10
7170509 Decal-hitch |
7170509 |
US $2.28 |
||
|
11
|
11
7175378
Decal, no passenger warning
|
7175378 |
— | ||
|
12
|
12
7175488 Decal, warning, clutch cover |
7175488 |
US $3.36 |
||
|
13
|
13
7175883 Decal-clutch,retaining bolt |
7175883 |
US $1.66 |
||
|
14
|
14
7179093 DECAL-WARN,FR & RR RACK,25/50 |
7179093 |
US $3.99 |
||
|
15
|
15
7181495 DECAL-WARN,TIRE/LOAD,7,7,290 |
7181495 |
US $3.99 |
||
|
16
|
16
7182972 DECAL-FR.CAB,AWD,LH |
7182972 |
US $16.24 |
||
|
16
|
16
7182973 DECAL-FR.CAB,AWD,RH |
7182973 |
US $16.24 |
||
|
17
|
17
7182974 DECAL-RR.CAB,POLARIS,LH |
7182974 |
US $20.28 |
||
|
17
|
17
7182975 DECAL-RR.CAB,POLARIS,RH |
7182975 |
US $20.28 |
||
|
18
|
18
7182976 DECAL-RR.FENDER,LH |
7182976 |
US $37.63 |
||
|
18
|
18
7182977 DECAL-RR.FENDER,RH |
7182977 |
US $37.63 |
||
|
19
|
19
7182984 DECAL-UPPR,FR.RACK |
7182984 |
US $29.54 |
||
|
20
|
20
7182970 DECAL-SCRAMBLER 850 HO,LH |
7182970 |
US $26.41 |
||
|
20
|
20
7182971 DECAL-SCRAMBLER 850 HO,RH |
7182971 |
US $27.39 |
