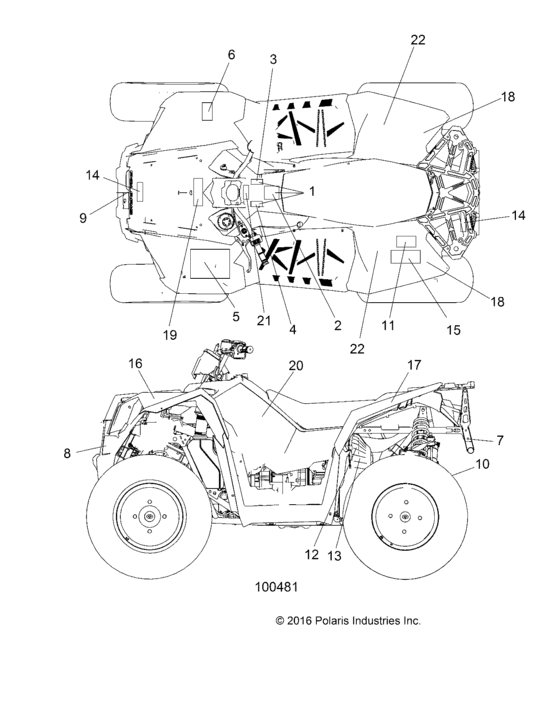

Body, Decals (A17SVE95AM) Diagram Polaris SCRAMBLER XP 1000
- Model code
- A17SVE95AM
- Year
- 2017
Difficulties in parts search?
![Body, Decals](https://storage.megazip.net/catalog/M/030/03054bc35ed085855a5f78f539cc88f4.png)
Difficulties in parts search?
![Body, Decals](https://storage.megazip.net/catalog/M/030/03054bc35ed085855a5f78f539cc88f4.png)
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
2634903 ASM-DECAL,WARN,AGE,OVERRIDEINCL. 2,3,4 |
2634903 |
US $17.10 |
||
2
|
2
7175374
Decal, age warning, 16
|
7175374 |
— | ||
3
|
3
7175485
Decal, caution, 4x4, awd
|
7175485 |
— | ||
4
|
4
7175486
Decal, warning, override
|
7175486 |
— | ||
5
|
5
7185095
Decal-Warn,general,1 Oc
|
7185095 |
— | ||
6
|
6
7179079 DECAL-WARN,DISC.,850 SCRAMBLER |
7179079 |
US $4.74 |
||
7
|
7
2636502 ASM-REFLECTOR,RED W/VHB TAPE |
2636502 |
US $7.09 |
||
8
|
8
2636503 ASM-REFLECTOR,AMBER W/VHB TAPE |
2636503 |
US $9.45 |
||
9
|
9
7078465 Logo-polaris star |
7078465 |
US $11.03 |
||
10
|
10
7170509 Decal-hitch |
7170509 |
US $2.28 |
||
11
|
11
7175378
Decal, no passenger warning
|
7175378 |
— | ||
12
|
12
7175488 Decal, warning, clutch cover |
7175488 |
US $3.36 |
||
13
|
13
7175883 Decal-clutch,retaining bolt |
7175883 |
US $1.66 |
||
14
|
14
7179093 DECAL-WARN,FR & RR RACK,25/50 |
7179093 |
US $3.99 |
||
15
|
15
7181495 DECAL-WARN,TIRE/LOAD,7,7,290 |
7181495 |
US $3.99 |
||
16
|
16
7184351 DECAL-FR.CAB,SIDE,AWD,LH |
7184351 |
US $21.49 |
||
16
|
16
7184352 DECAL-FR.CAB,SIDE,AWD,RH |
7184352 |
US $21.49 |
||
17
|
17
7184353 DECAL-RR.CAB,SIDE,POLARIS,LH |
7184353 |
US $10.15 |
||
17
|
17
7184354 DECAL-RR.CAB,SIDE,POLARIS,RH |
7184354 |
US $10.15 |
||
18
|
18
7184355 DECAL-RR.CAB,TOP,LH |
7184355 |
US $22.45 |
||
18
|
18
7184356 DECAL-RR.CAB,TOP,RH |
7184356 |
US $22.45 |
||
19
|
19
7184348 DECAL-UPPER,FR,RACK |
7184348 |
US $11.24 |
||
20
|
20
7184349 DECAL-SIDE,1000 XP,LH |
7184349 |
US $16.24 |
||
20
|
20
7184350 DECAL-SIDE,1000 XP,RH |
7184350 |
US $16.24 |
||
21
|
21
7179048 Decal-eps,scrambler |
7179048 |
US $8.17 |
||
22
|
22
7184358 DECAL-RR.CAB,BTM,RH |
7184358 |
US $8.17 |
||
22
|
22
7184357 DECAL-RR.CAB,BTM,LH |
7184357 |
US $8.17 |
