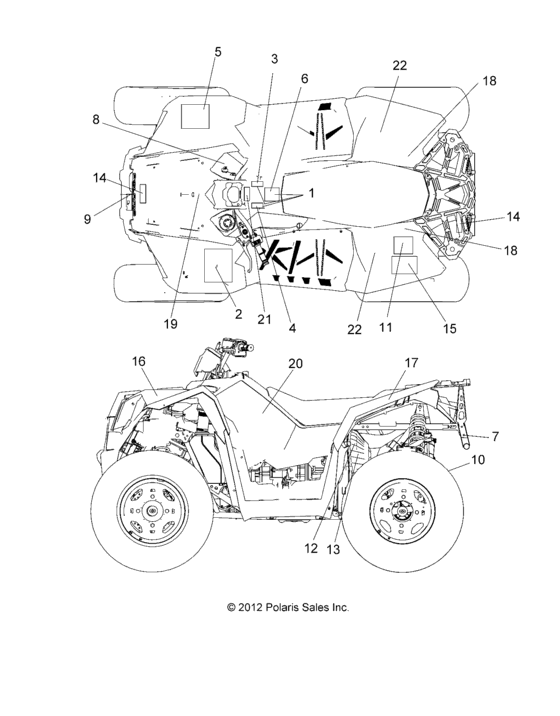

Body, Decals (A14GH9EFW (49ATVDECAL14SCRAMI)) Diagram Polaris SCRAMBLER XP 1000 HO EPS INTL
- Model code
- A14GH9EFW
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2634902
Asm., Decal, Age Warning, Override
INCL. 3,4,6 |
2634902 |
— | ||
|
2
|
2
7173025 Decal, warning, general, cpsc |
7173025 |
US $22.31 |
||
|
3
|
3
7175485
Decal, caution, 4x4, awd
|
7175485 |
— | ||
|
4
|
4
7175486
Decal, warning, override
|
7175486 |
— | ||
|
5
|
5
7179119
Decal, Warning, Disc
|
7179119 |
— | ||
|
6
|
6
7173027 Decal, age warning, 16 |
7173027 |
US $17.85 |
||
|
7
|
7
2633065 Asm-reflector,red,e-mark |
2633065 |
US $6.11 |
||
|
8
|
8
7174569 Decal-ignigtion lighting |
7174569 |
US $4.34 |
||
|
9
|
9
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
10
|
10
7170509 Decal-hitch |
7170509 |
US $2.28 |
||
|
11
|
11
7175378
Decal, no passenger warning
|
7175378 |
— | ||
|
12
|
12
7175826 Decal, warning, clutch cover, quad |
7175826 |
US $34.65 |
||
|
13
|
13
7175883 Decal-clutch,retaining bolt |
7175883 |
US $1.66 |
||
|
14
|
14
7179093 DECAL-WARN,FR & RR RACK,25/50 |
7179093 |
US $3.99 |
||
|
15
|
15
7179105
Decal, Warning, Tire
|
7179105 |
— | ||
|
16
|
16
7179923 DECAL-FR.CAB,AWD,RH |
7179923 |
US $31.52 |
||
|
16
|
16
7179922 DECAL-FR.CAB,AWD,LH |
7179922 |
US $31.52 |
||
|
17
|
17
7179925 DECAL-RR.CAB,POLARIS,RH |
7179925 |
US $17.24 |
||
|
17
|
17
7179924 DECAL-RR.CAB,POLARIS,LH |
7179924 |
US $17.24 |
||
|
18
|
18
7179926 Decal, reflector, amber |
7179926 |
US $41.76 |
||
|
18
|
18
7179927 Decal, reflector, red |
7179927 |
US $41.76 |
||
|
19
|
19
7179930 DECAL-UPPR,FR.RACK |
7179930 |
US $17.24 |
||
|
20
|
20
7179920 DECAL-SIDE,SCRAMBLR1000HOXP,LH |
7179920 |
US $25.43 |
||
|
20
|
20
7179921 DECAL-SIDE,SCRAMBLR1000HOXP,RH |
7179921 |
US $25.43 |
||
|
21
|
21
7179048 Decal-eps,scrambler |
7179048 |
US $8.17 |
||
|
22
|
22
7179928 DECAL-RR.FENDER,LOWER,LH |
7179928 |
US $15.26 |
||
|
22
|
22
7179929 DECAL-RR.FENDER,LOWER,RH |
7179929 |
US $15.26 |
