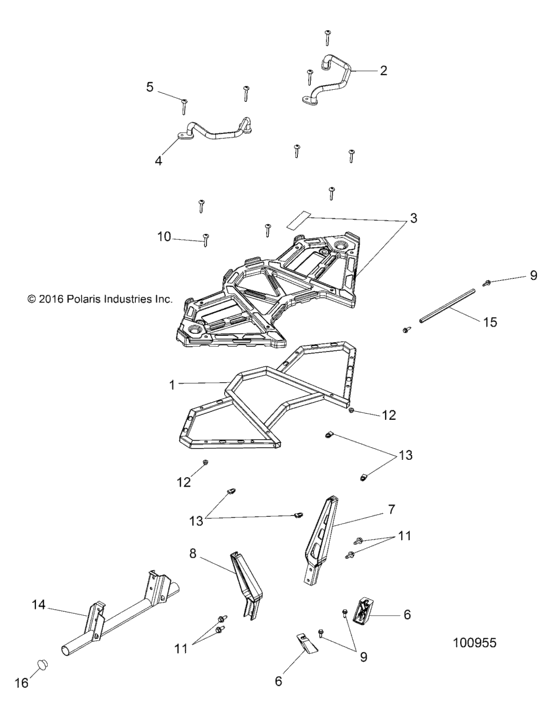

Body, Rear Rack (A18SVS95FR) Diagram Polaris SCRAMBLER XP 1000 ZUG
- Model code
- A18SVS95FR
- Year
- 2018
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1018901-329 Weld-rack,rear,blk |
1018901-329 |
US $206.78 |
||
|
2
|
2
1021597-458 WELD-HAND GRIP,PASS,LH,M.BLK |
1021597-458 |
US $24.62 |
||
|
3
|
3
2635754-070 ASM-RACK,REAR,EU,BLKINCL. WARNING DECAL |
2635754-070 |
US $254.08 |
||
|
4
|
4
1021598-458 WELD-HAND GRIP,PASS,RH,M.BLK |
1021598-458 |
US $24.62 |
||
|
5
|
5
7519001
Scr-m6x1x40,tr/tx-m
|
7519001 |
— | ||
|
6
|
6
5632708 Brkt-rack support,frt |
5632708 |
US $20.28 |
||
|
7
|
7
5632709 Brkt-rack support,rear,lh |
5632709 |
US $29.54 |
||
|
8
|
8
5632710 Brkt-rack support,rear,rh |
5632710 |
US $29.54 |
||
|
9
|
9
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
10
|
10
7519220 Scr-txth-m6x1.0x50, 8.8, zpb |
7519220 |
US $3.27 |
||
|
11
|
11
7519780 Scr-hwh-m8x1.25x20 tap/r zpb |
7519780 |
US $2.98 |
||
|
12
|
12
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
13
|
13
7547366
Clip-"u",m6,0x1,0
|
7547366 |
— | ||
|
14
|
14
1018900-458
Weld-Grab Bar,m.blk
|
1018900-458 |
— | ||
|
15
|
15
5138253 Tube-rack support strap |
5138253 |
US $42.46 |
||
|
16
|
16
5450305 Plug-end cap,1.25" dia,ribbed |
5450305 |
US $2.66 |
