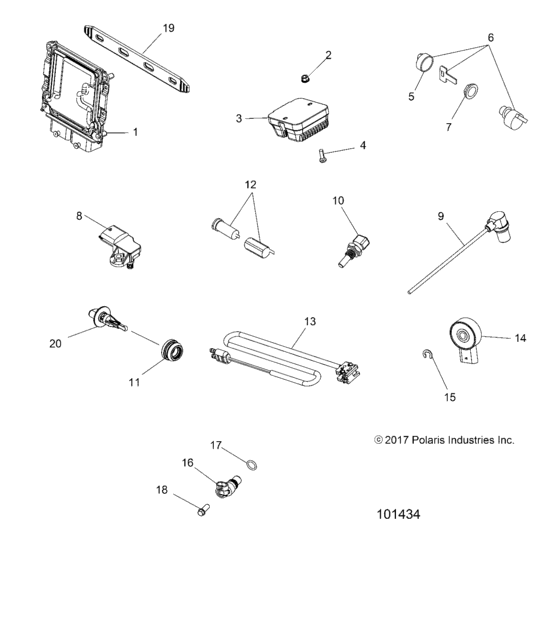

Electrical, Switches, Sensors, Ecu And Control Modules (A18SVS95FR) Diagram Polaris SCRAMBLER XP 1000 ZUG
- Model code
- A18SVS95FR
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4014125 Ecm-no start,me17 |
4014125 |
US $1,063.11 |
||
|
2
|
2
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
3
|
3
4016868 REGULATOR-3PH,50A,SERIES,HISPD |
4016868 |
US $166.34 |
||
|
3
|
3
2414131 Harness-Jumper,regulator |
2414131 |
US $110.29 |
||
|
4
|
4
7519202 Screw, flange |
7519202 |
US $6.56 |
||
|
5
|
5
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
6
|
6
4012166 Switch-key,4 pos,atv,mt slvINCL. 5 |
4012166 |
US $98.44 |
||
|
7
|
7
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
8
|
8
2411528 Sensor-tmap dss3-tf |
2411528 |
US $115.45 |
||
|
8
|
8
3131753 SCREW-TMAPUSE W/2411528 |
3131753 |
US $1.49 |
||
|
9
|
9
2411589 Sensor-crank position |
2411589 |
US $93.52 |
||
|
9
|
9
7518548
Scr-m6x16,hxflg,0600214
|
7518548 |
— | ||
|
10
|
10
4010644 Sensor-thermister |
4010644 |
US $88.57 |
||
|
11
|
11
5436346 Grommet-air temp sensor |
5436346 |
US $3.94 |
||
|
12
|
12
4012393
Receptacle-pod mnt,12 volt
|
4012393 |
— | ||
|
13
|
13
2202794 Kit-brake light swtch 98-16756 |
2202794 |
US $64.02 |
||
|
14
|
14
3233835
Switch-rotary,6 pin
GEAR POSITION |
3233835 |
— | ||
| replacement | |||||
|
14
|
14
3236115 SWITCH-ROTARY,6 PINGEAR POSITION |
3236115 |
US $130.52 |
||
|
15
|
15
3233834 Ring-retaining |
3233834 |
US $10.01 |
||
|
16
|
16
4013908 Sensor-speed,trans |
4013908 |
US $103.36 |
||
|
17
|
17
3234302 O-ring, -113 |
3234302 |
US $9.24 |
||
|
18
|
18
3234329
Screw,hexflangehead,m8x1,25x30
|
3234329 |
— | ||
|
19
|
19
5414193 Strap-ecu |
5414193 |
US $18.52 |
||
|
20
|
20
2410687 Sensor-air temp |
2410687 |
US $157.50 |
||
