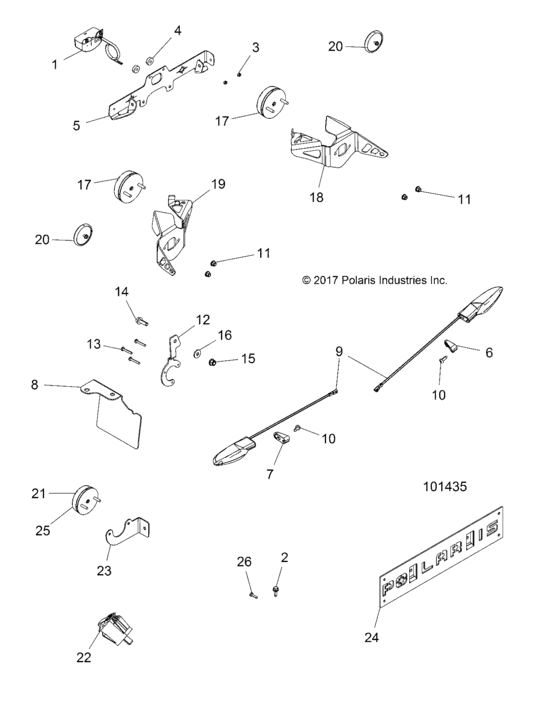

Electrical, Turn Signals And License Plate (A18SVS95FR) Diagram Polaris SCRAMBLER XP 1000 ZUG
- Model code
- A18SVS95FR
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2413838 LIGHT-LICENSE PLATE,TRACTR,BLK |
2413838 |
US $118.16 |
||
|
4
|
4
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
5
|
5
5266157-458 Brkt-Rr,lic.plate,scrm,eu,blk |
5266157-458 |
US $24.41 |
||
|
6
|
6
5416070 Support-Front,signal,scrm,lh |
5416070 |
US $3.27 |
||
|
7
|
7
5416071 Support-Front,signal,scrm,rh |
5416071 |
US $3.27 |
||
|
8
|
8
5261971-458 BRKT-VIN,PLATE,M.BLK |
5261971-458 |
US $25.60 |
||
|
8
|
8
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
9
|
9
2413531 SIGNAL-TURN,FRONT,TR |
2413531 |
US $102.39 |
||
|
10
|
10
7519248 Scr-txph-m6x1.0x25 8.8 zc |
7519248 |
US $1.49 |
||
|
11
|
11
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
12
|
12
5263450-458 Brkt-Trailer Socket,m.blk |
5263450-458 |
US $14.16 |
||
|
13
|
13
7512025 Screw |
7512025 |
US $3.26 |
||
|
14
|
14
7518514
Bolt-m8x1,25x25,hxflg-olive d
|
7518514 |
— | ||
|
15
|
15
7547332
Nut-m8x1,25,flg,nyloc-olive d
|
7547332 |
— | ||
|
16
|
16
7555960 Washer,flat |
7555960 |
US $5.25 |
||
|
17
|
17
2413977 LIGHT-STOP,TAIL,TURN,ECE,LED |
2413977 |
US $65.22 |
||
|
18
|
18
5263710-458 Brkt-Scrm,tail Light,lh,m.blk |
5263710-458 |
US $43.45 |
||
|
19
|
19
5263711-458 Brkt-Scrm,tail Light,rh,m.blk |
5263711-458 |
US $43.45 |
||
|
20
|
20
5454243 Reflector-Red,circle,was |
5454243 |
US $1.09 |
||
|
21
|
21
2413305 LIGHT,REAR FOG INCANDESCENT |
2413305 |
US $147.72 |
||
|
22
|
22
4015769 SWITCH-REAR FOG,ON/OFF |
4015769 |
US $76.79 |
||
|
23
|
23
5261659-458 Brkt-Fog Lamp,spmn,1000,m.blk |
5261659-458 |
US $14.28 |
||
|
24
|
24
5263392-458 Brkt-Fr,reg Pl,scrm,eu,m.blk |
5263392-458 |
US $33.08 |
||
|
25
|
25
5452671-464
Cover-Fog Light,blk
|
5452671-464 |
— | ||
|
26
|
26
7518238
Scr-10x5/8-hi/lo,pn-t25,trx-m
|
7518238 |
— |
