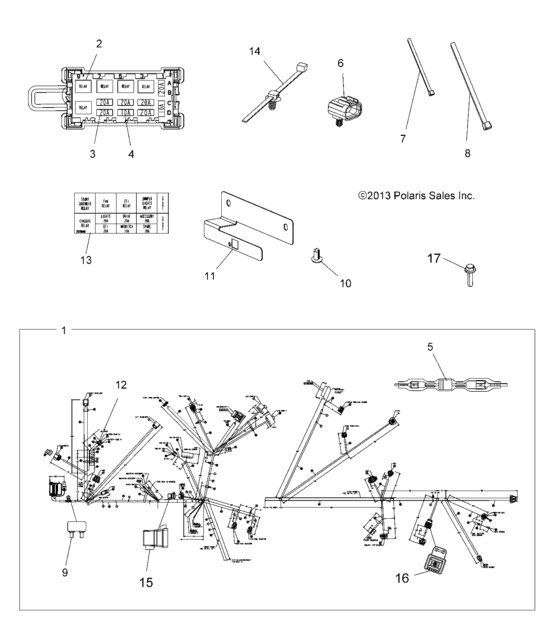

Electrical, Harness, Non (EPS) Diagram Polaris SCRAMBLER XP 850 HO/EPS
- Model code
- A14GH85AD/EAI
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2412570 HARNESS-MAIN,SCRAMBLER 850INCL. 1-6,9,12-13, ALL KITS, COVER |
2412570 |
US $960.14 |
||
|
1
|
1
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
1
|
1
5438758 Cover-relay/fuse center |
5438758 |
US $12.79 |
||
|
2
|
2
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
3
|
3
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
4
|
4
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
9
|
9
2410692 Breaker-circuit,10 amp,sealed |
2410692 |
US $12.20 |
||
|
10
|
10
7670125 Fastner-push-on clip,,250 |
7670125 |
US $7.30 |
||
|
11
|
11
5257967
Bracket, Fuse Block
|
5257967 |
— | ||
|
12
|
12
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
12
|
12
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
13
|
13
7175141 Label-fuse box,850 |
7175141 |
US $1.66 |
||
|
14
|
14
7081496
Clip-routing
|
7081496 |
— | ||
|
15
|
15
2204853 Kit-relay,eps,repairINCL. 4010725, WIRE HARNESS, REPAIR, CONNECTORS, SHRINK TUBES, INSTRUCTIONS |
2204853 |
US $67.34 |
||
|
15
|
15
4010725 Relay-spdt,sealed |
4010725 |
US $34.67 |
||
|
16
|
16
4014055 Module-resistor |
4014055 |
US $20.28 |
||
|
17
|
17
7519145
Scr-hxfl-m6x1,0x12 8,8 zod p30
MAIN HARNESS GROUND TO FRAME |
7519145 |
— |
