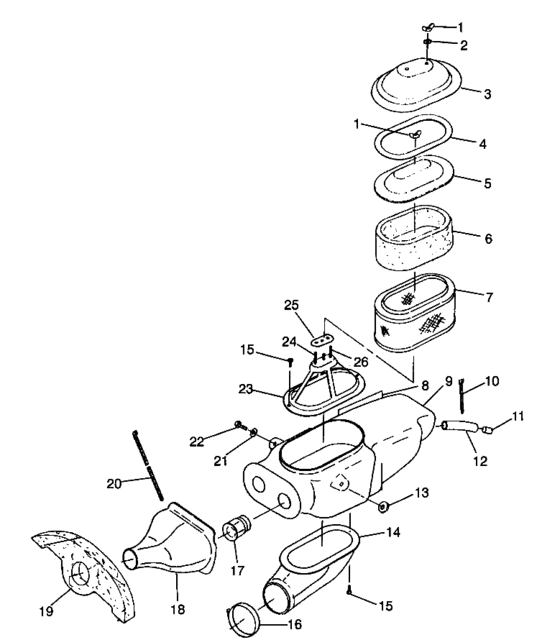

Air box (Sport 400L W98BA38C) Diagram Polaris SPORT 400L
- Model code
- W98BA38C
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542127 Nut,wing(10)10; |
7542127 |
US $1.89 |
||
|
2
|
2
7555776
Washer
10; |
7555776 |
— | ||
| replacement | |||||
|
2
|
2
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
3
|
3
5240424
Cover,air box
|
5240424 |
— | ||
|
4
|
4
5810948
Gasket,cover
|
5810948 |
— | ||
|
5
|
5
5240336
Cover, air box
|
5240336 |
— | ||
|
6
|
6
5811099 Foam,precleaner,sleeve |
5811099 |
US $12.99 |
||
|
7
|
7
1253118 Filter,air |
1253118 |
US $34.46 |
||
|
8
|
8
5810966 Foil, airbox |
5810966 |
US $19.30 |
||
|
9
|
9
5432883
Box,air silencer
|
5432883 |
— | ||
|
10
|
10
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
|
11
|
11
7080487 Cap, plug10; |
7080487 |
US $1.89 |
||
|
12
|
12
8450051-600
Line, fuel
|
8450051-600 |
— | ||
| replacement | |||||
|
12
|
12
2871058
Hose,25ft.x 3/8``i.d.
|
2871058 |
— | ||
|
13
|
13
5431997
Insulator
|
5431997 |
— | ||
|
14
|
14
5410857
Boot,carb,,(400)
400; |
5410857 |
— | ||
|
15
|
15
7511881 Screw(10)10; |
7511881 |
US $26.30 |
||
|
16
|
16
7080584
Clamp
10; |
7080584 |
— | ||
|
17
|
17
5431698
Ventura,intake
|
5431698 |
— | ||
|
18
|
18
5410934
Boot,air silencer
|
5410934 |
— | ||
|
19
|
19
5811102 Foam,collar |
5811102 |
US $19.30 |
||
|
20
|
20
7080598 Cable tie,21,25 inch10; |
7080598 |
US $5.11 |
||
|
21
|
21
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
22
|
22
7515179 Screw10; |
7515179 |
US $2.98 |
||
|
23
|
23
5432607 Stand,filter |
5432607 |
US $28.37 |
||
|
24
|
24
7515150 Stud10; |
7515150 |
US $5.22 |
||
|
25
|
25
5811012 Seal,foam,airbox |
5811012 |
US $9.85 |
||
|
26
|
26
7515151 Stud10; |
7515151 |
US $5.22 |
||
