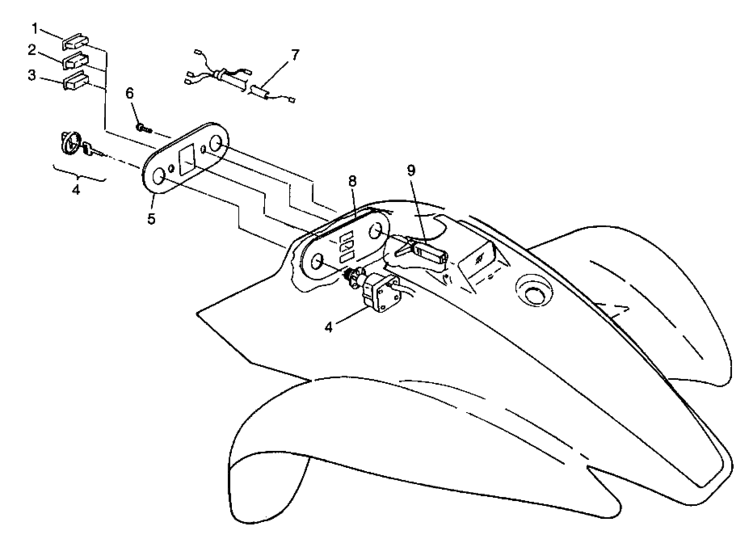

Control panel (Sport 400L W98BA38C) Diagram Polaris SPORT 400L
- Model code
- W98BA38C
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4040012
Indicator'low-oil'warn,
|
4040012 |
— | ||
|
2
|
2
4040054 Indic"neut,/rev," |
4040054 |
US $25.43 |
||
|
3
|
3
4040053 Indic"hot temperature" |
4040053 |
US $34.46 |
||
|
4
|
4
4110194 Switch, ignitionIncl. Key; |
4110194 |
US $123.11 |
||
|
5
|
5
5431976
Panel,control,outer
|
5431976 |
— | ||
|
6
|
6
7512026
Screw
10; |
7512026 |
— | ||
|
7
|
7
2460521
Harness,control panel
|
2460521 |
— | ||
|
8
|
8
5431975 Panel,control,inner |
5431975 |
US $21.49 |
||
|
9
|
9
7080371 Cable, choke |
7080371 |
US $86.68 |
