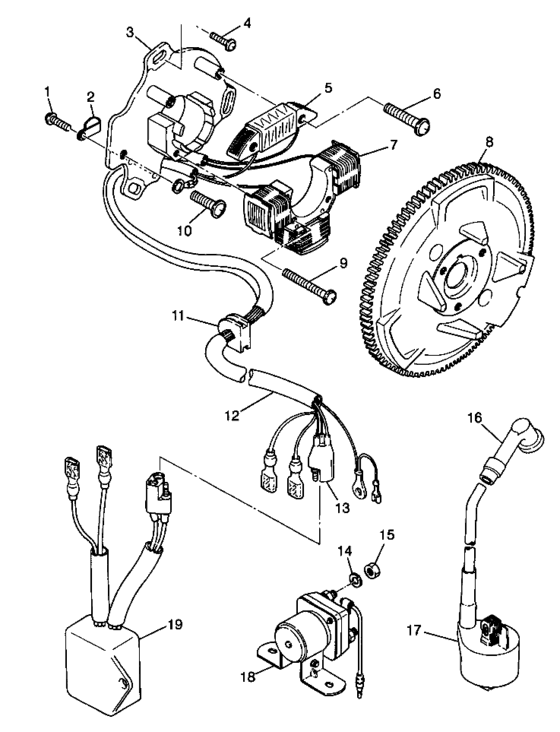

Magneto (Sport 400L W98BA38C) Diagram Polaris SPORT 400L
- Model code
- W98BA38C
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3081256 Screw&washer asm(10)10; |
3081256 |
US $1.49 |
||
|
2
|
2
3081146 Clamp |
3081146 |
US $1.49 |
||
|
3
|
3
3084785
Plate asm,
Incl. 1-3, 5-7, 9-13; |
3084785 |
— | ||
|
3
|
3
3084786 Plate, coil |
3084786 |
US $117.20 |
||
|
4
|
4
3084766
Screw, flange
Pilot; |
3084766 |
— | ||
|
5
|
5
3083422
Coil, exciting
|
3083422 |
— | ||
|
6
|
6
3083423 Asm,,screw & washer |
3083423 |
US $1.49 |
||
|
7
|
7
3084788
Stator 1
|
3084788 |
— | ||
| replacement | |||||
|
7
|
7
3084785
Plate asm,
|
3084785 |
— | ||
|
8
|
8
3084784
Flyheel,w/ring gear
|
3084784 |
— | ||
|
9
|
9
3081342 Screw&washer asm(10)10; |
3081342 |
US $1.49 |
||
|
10
|
10
3081260 Asm,,screw&washer(10)10; |
3081260 |
US $1.89 |
||
|
11
|
11
3084789 Grommet |
3084789 |
US $13.30 |
||
|
12
|
12
3084787 Harness, wire |
3084787 |
US $157.15 |
||
|
13
|
13
3083909 Coupler |
3083909 |
US $14.09 |
||
|
14
|
14
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
15
|
15
3083073 Nut |
3083073 |
US $0.79 |
||
|
16
|
16
4020129 Resistor plug cap (10)10; |
4020129 |
US $11.03 |
||
|
17
|
17
3083923
Coil, ignition *
|
3083923 |
— | ||
|
18
|
18
3085521
Switch, magnetic
|
3085521 |
— | ||
| replacement | |||||
|
18
|
18
4011335 Switch-magnetic |
4011335 |
US $70.26 |
||
|
19
|
19
3085632
Cdi system
|
3085632 |
— | ||
| replacement | |||||
|
19
|
19
3084790
Cdi system
|
3084790 |
— | ||
