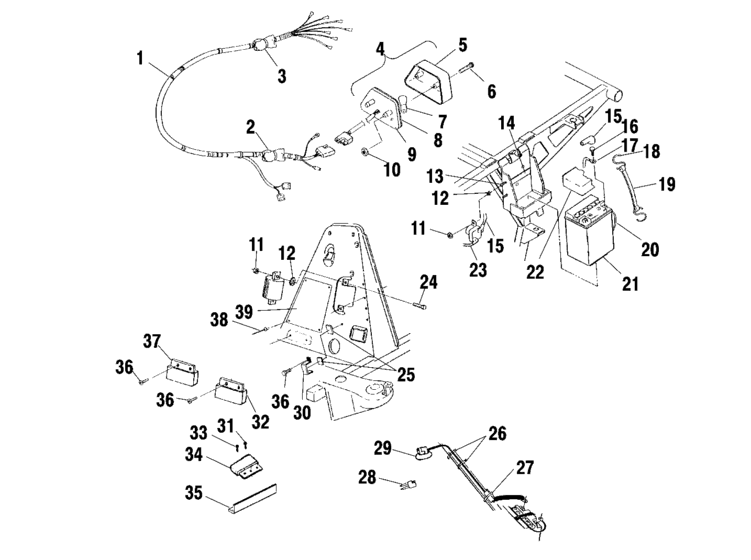

Electrical/taillight (A00CH33AB) Diagram Polaris SPORTSMAN 335
- Model code
- A00CH33AA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460544 Harness-main wire |
2460544 |
US $428.40 |
||
|
2
|
2
2200593 Kit,ckt,brkr,20 amp |
2200593 |
US $45.69 |
||
|
3
|
3
2201795 Kit-circut breaker,fan |
2201795 |
US $47.67 |
||
|
4
|
4
2432034 Tail light asm,Incl. 5-10; |
2432034 |
US $51.21 |
||
|
5
|
5
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
6
|
6
4032029 Screw |
4032029 |
US $2.98 |
||
|
7
|
7
4030043 Bulb |
4030043 |
US $4.94 |
||
|
8
|
8
4032045 Gasket |
4032045 |
US $5.11 |
||
|
9
|
9
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
10
|
10
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
11
|
11
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
12
|
12
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
13
|
13
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
14
|
14
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
15
|
15
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
16
|
16
2200361 Kit-battery bolt (short)SHORT; |
2200361 |
US $1.77 |
||
|
17
|
17
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
18
|
18
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
19
|
19
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
20
|
20
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
21
|
21
4140006 Battery |
4140006 |
US $275.60 |
||
|
22
|
22
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
23
|
23
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
24
|
24
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
25
|
25
5810455 Pad |
5810455 |
US $1.66 |
||
|
26
|
26
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
27
|
27
7080492 Cable tie,11 inch10; |
7080492 |
US $3.64 |
||
|
28
|
28
2460442 Pigtail, power |
2460442 |
US $15.26 |
||
|
29
|
29
2410022
Power asm,12v
If built before 9/27/99; |
2410022 |
— | ||
|
30
|
30
5241416 Bracket-cdi |
5241416 |
US $7.09 |
||
|
31
|
31
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
|
32
|
32
4010164
Relay,solid state,lr-60
|
4010164 |
— | ||
|
33
|
33
7512017 Screw10; |
7512017 |
US $2.45 |
||
|
34
|
34
4060191
Rectifier/regulator,lr-35
|
4060191 |
— | ||
|
35
|
35
5131818
Heatsink,rect,
|
5131818 |
— | ||
|
36
|
36
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
37
|
37
4060205
Limiter,rpm,lr-83,hub ground
|
4060205 |
— | ||
|
38
|
38
7621336 Rivet,(50)50; |
7621336 |
US $0.79 |
||
|
39
|
39
4040064
Board, terminal
|
4040064 |
— | ||
| replacement | |||||
|
39
|
39
4040063
Board,terminal,150 alt,atv
|
4040063 |
— | ||
