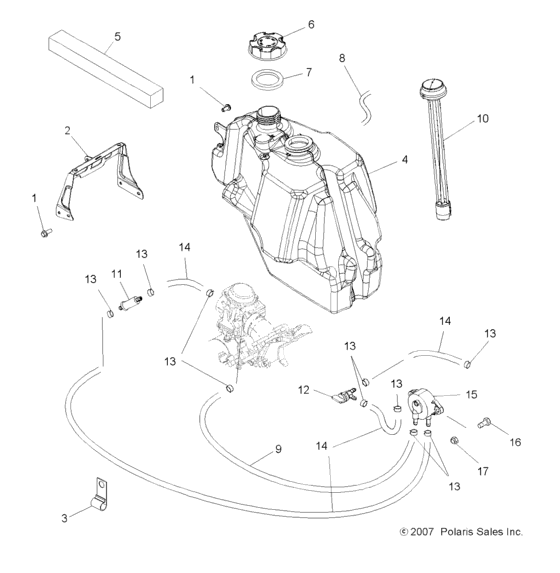

Body, fuel tank (A08LH46AQ/AX/AZ) Diagram Polaris SPORTSMAN 400 HO 4X4
- Model code
- A08LH46AQ/AX/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
2
|
2
1016190-329 Weld-fuel tank bracket,e-coat |
1016190-329 |
US $81.76 |
||
|
3
|
3
7080884 Clip,j |
7080884 |
US $3.75 |
||
|
4
|
4
2520804
Asm., fuel tank
Incl. Gauge; |
2520804 |
— | ||
|
5
|
5
5813277 Foam-seal,1,5x15 |
5813277 |
US $3.26 |
||
|
6
|
6
5433687 Cap,gas tank |
5433687 |
US $24.08 |
||
|
7
|
7
5812123 Gasket |
5812123 |
US $10.03 |
||
|
8
|
8
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
9
|
9
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
11
|
11
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
12
|
12
7052249 Valve-fuel,plastic 90?,1/4hose |
7052249 |
US $22.45 |
||
|
13
|
13
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
14
|
14
8450117-250 Fuel hose-250 cm |
8450117-250 |
US $43.72 |
||
|
15
|
15
3089760 Asm-fuel pump |
3089760 |
US $70.39 |
||
|
16
|
16
7518533 Bolt-m6x1,0x20,hxhd,flg,blk |
7518533 |
US $1.96 |
||
|
17
|
17
7547339
Nut-m6x1,0,flg-nyloc-olive d
|
7547339 |
— |
