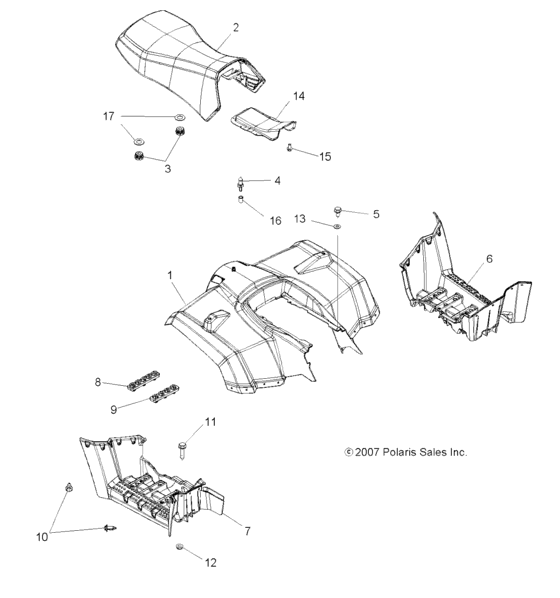

Body, rear cab and seat (A08LH46AQ/AX/AZ) Diagram Polaris SPORTSMAN 400 HO 4X4
- Model code
- A08LH46AQ/AX/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2633588-455 Asm-cab/foil,rr,camo,nbuAQ;Incl. All Foil from Body, Rear Cab Foil Page; |
2633588-455 |
US $758.26 |
||
|
1
|
1
2633566-498 Asm-cab/foil,rear,sagebrushAZ;Incl. All Foil from Body, Rear Cab Foil Page; |
2633566-498 |
US $349.62 |
||
|
1
|
1
2633566-293 Asm-cab/foil,rear,indy redAX;Incl. All Foil from Body, Rear Cab Foil Page; |
2633566-293 |
US $349.62 |
||
|
2
|
2
2684012-070
Covering, seat, black
|
2684012-070 |
— | ||
|
2
|
2
2684099-070
Asm., seat, black
Incl. 3,14,15,17; |
2684099-070 |
— | ||
|
3
|
3
5412994 Grommet-seat latch |
5412994 |
US $1.77 |
||
|
4
|
4
5910283
Pin, seat latch
|
5910283 |
— | ||
|
5
|
5
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
6
|
6
5437209-070
Footwell-lh,black
|
5437209-070 |
— | ||
|
7
|
7
5437210-070 Footwell-rh,black |
5437210-070 |
US $223.56 |
||
|
8
|
8
5413164 Pad-footwell,long |
5413164 |
US $19.30 |
||
|
9
|
9
5413165 Pad-footwell,short |
5413165 |
US $19.30 |
||
|
10
|
10
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
11
|
11
7518530 Bolt-m6x1,0x30,hxhd,flg,blk |
7518530 |
US $1.49 |
||
|
12
|
12
7547339
Nut-m6x1,0,flg-nyloc-olive d
|
7547339 |
— | ||
|
13
|
13
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
14
|
14
5437215 Cover-seat,plastic insert |
5437215 |
US $29.54 |
||
|
15
|
15
7527815 Screw,tapping, |
7527815 |
US $2.45 |
||
|
16
|
16
7542143 Insert |
7542143 |
US $4.43 |
||
|
17
|
17
7555945 Washer,thrust |
7555945 |
US $3.26 |
