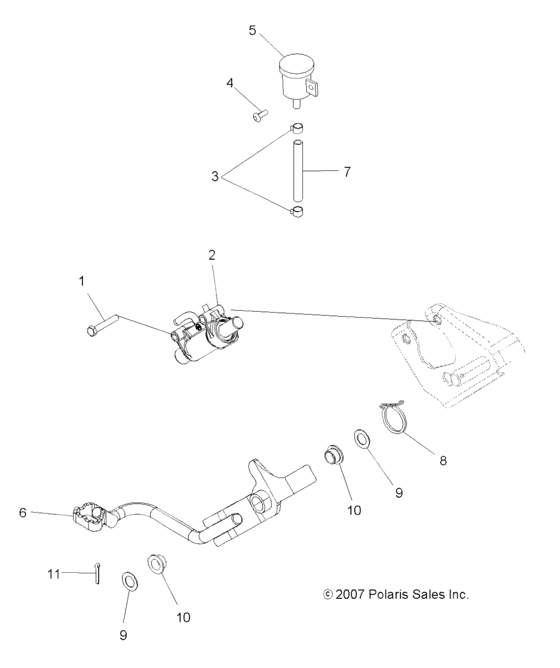

Brakes, brake pedal and rear master cylinder (A08LH46AQ/AX/AZ) Diagram Polaris SPORTSMAN 400 HO 4X4
- Model code
- A08LH46AQ/AX/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518470 Bolt-m6x1,0x40 hxhd,flg,w/patc |
7518470 |
US $0.79 |
||
|
2
|
2
1911310 Asm-master cyl,brake,rr,5/8"hb |
1911310 |
US $187.11 |
||
|
3
|
3
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
4
|
4
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
5
|
5
1930854 Reservoir asm,r,brake |
1930854 |
US $27.58 |
||
|
6
|
6
1015048-067 Weld-brake pedal,blk |
1015048-067 |
US $64.02 |
||
|
7
|
7
1911267-708 Hose-reservoir,brake,708mm |
1911267-708 |
US $8.17 |
||
|
8
|
8
7043126 Spring-torsion,brake |
7043126 |
US $2.28 |
||
|
9
|
9
7555919 Washer |
7555919 |
US $6.21 |
||
|
10
|
10
5433189 Bushing-pedal pivot |
5433189 |
US $6.56 |
||
|
11
|
11
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
