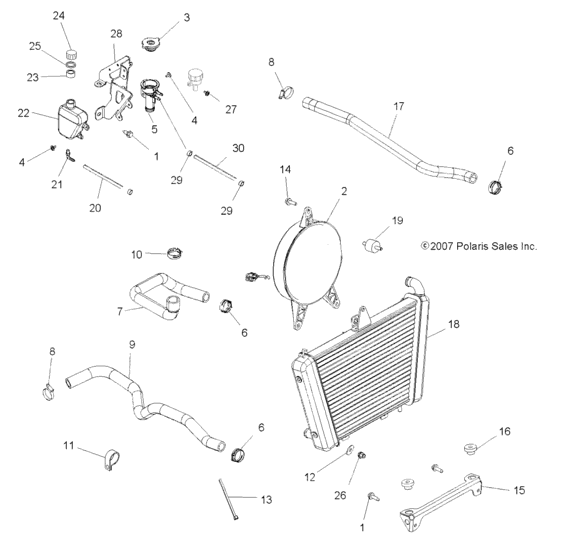

Engine, cooling system (A08LH46AQ/AX/AZ) Diagram Polaris SPORTSMAN 400 HO 4X4
- Model code
- A08LH46AQ/AX/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
2
|
2
2520850 Asm-fan/motor,190mm |
2520850 |
US $312.94 |
||
|
3
|
3
1240044
Cap, pressure
|
1240044 |
— | ||
|
4
|
4
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
5
|
5
5435196 Filler-neck,remote,coolant,2fit |
5435196 |
US $15.17 |
||
|
6
|
6
7080841 Clamp,springband 27/12,green |
7080841 |
US $9.85 |
||
|
7
|
7
5413367 Hose-engine,filler |
5413367 |
US $18.32 |
||
|
8
|
8
7080696 Clamp,hose,1,25,worm drive |
7080696 |
US $3.94 |
||
|
9
|
9
5413365
Hose-engine,lower
|
5413365 |
— | ||
|
10
|
10
7080844 Clamp,springband 35/12,blk |
7080844 |
US $8.66 |
||
|
11
|
11
7080807
Clamp-hose
|
7080807 |
— | ||
|
12
|
12
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
13
|
13
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
14
|
14
7517975 Bolt-m6 hex hd |
7517975 |
US $3.75 |
||
|
15
|
15
5251445-067 Brkt-radiator,blk |
5251445-067 |
US $33.50 |
||
|
16
|
16
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
17
|
17
5413366 Hose-engine,upper |
5413366 |
US $21.49 |
||
|
18
|
18
1240361 Radiator-core,400ho |
1240361 |
US $497.32 |
||
|
19
|
19
3110071 Mount,carb,rubber |
3110071 |
US $15.26 |
||
|
20
|
20
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
21
|
21
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
22
|
22
5436936 Tank-surge |
5436936 |
US $79.31 |
||
|
23
|
23
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
24
|
24
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
25
|
25
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
26
|
26
7542105 Nut hex |
7542105 |
US $3.26 |
||
|
27
|
27
7517560 Screw |
7517560 |
US $2.45 |
||
|
28
|
28
5251406-067
Brkt-radiator fill mount,blk
|
5251406-067 |
— | ||
|
29
|
29
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
30
|
30
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
