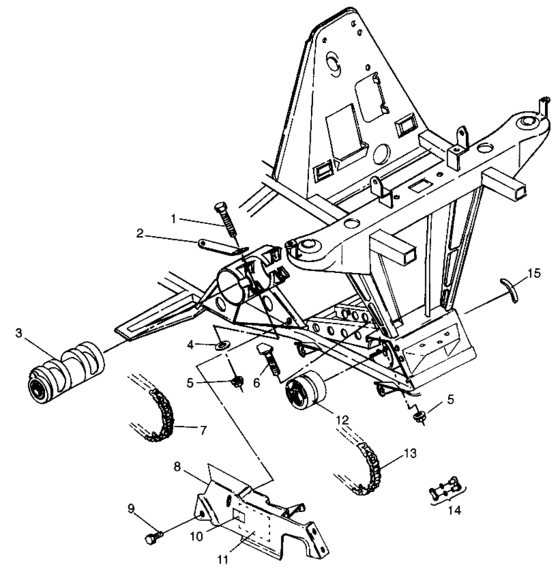

Front drive (Sportsman 4x4 W968040) Diagram Polaris SPORTSMAN 4X4
- Model code
- W968040
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515346 Screw10; |
7515346 |
US $3.75 |
||
|
2
|
2
5222270-067
Brkt,up.cover mt.
|
5222270-067 |
— | ||
|
3
|
3
1380057
Tightener asm,ctr.
See Pg., Ref.; |
1380057 |
— | ||
| replacement | |||||
|
3
|
3
1380123
New Genuine Part
See Pg., Ref.; |
1380123 |
— | ||
|
4
|
4
7555883 Washer10; |
7555883 |
US $2.98 |
||
|
5
|
5
7542503 Nut,flexlock,10; |
7542503 |
US $9.85 |
||
|
6
|
6
7512577
Bolt, flag
10; |
7512577 |
— | ||
|
7
|
7
3224044
Chain, drive
70P;Incl. 14; |
3224044 |
— | ||
| replacement | |||||
|
7
|
7
3224056-070
Chain, 70p
70P;Incl. 14; |
3224056-070 |
— | ||
|
8
|
8
5431472
Guard,chain,front
|
5431472 |
— | ||
|
9
|
9
7512252
Screw
10; |
7512252 |
— | ||
|
10
|
10
7074956
Decal,fr.chain tension
|
7074956 |
— | ||
|
11
|
11
5810493
Tape,foil,pan#3
|
5810493 |
— | ||
|
13
|
13
3224041
Chain, drive
Incl. 14; |
3224041 |
— | ||
| replacement | |||||
|
13
|
13
3221193-064 Chain-520 ord4,o-ring,64 pitchIncl. 14; |
3221193-064 |
US $91.60 |
||
|
14
|
14
3225024 Connector link |
3225024 |
US $9.15 |
||
|
15
|
15
5431095
Spacer,f.eccentric
|
5431095 |
— | ||
| replacement | |||||
|
15
|
15
5811519
Spacer,f.eccentric
|
5811519 |
— | ||
