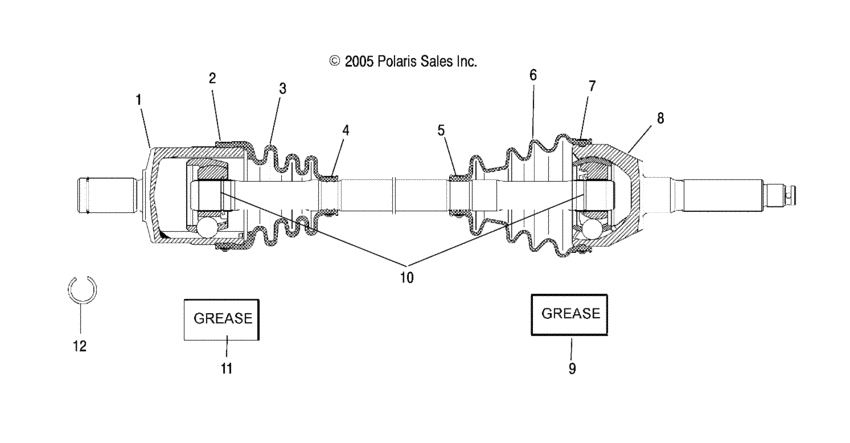

Drive shaft, front (A06MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A06MH50FC
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1590413 Joint-plunging,serv,gknInner;Incl. 10,12; |
1590413 |
US $295.44 |
||
|
2
|
2
7710580 Clamp-large |
7710580 |
US $5.43 |
||
|
3
|
3
1332364
Boot, gear side
|
1332364 |
— | ||
|
3
|
3
2202910 Kit-boot(gear side)Incl. Clamps and Grease; |
2202910 |
US $51.98 |
||
|
4
|
4
7710579 Clamp-small |
7710579 |
US $5.43 |
||
|
5
|
5
1350061 Clamp-small 25,0 mm |
1350061 |
US $6.69 |
||
|
6
|
6
5411106 Boot, cv joint |
5411106 |
US $57.42 |
||
|
6
|
6
2201630 Boot,kit front (wheel side)Incl. Clamps and Grease; |
2201630 |
US $63.79 |
||
|
7
|
7
1350062 Clamp-large 76,5 mm |
1350062 |
US $6.69 |
||
|
8
|
8
1590372 Joint-cv,front,gknOuter;Incl. 10; |
1590372 |
US $244.23 |
||
|
9
|
9
1350046
Grease,30g btb
|
1350046 |
— | ||
|
10
|
10
1332434
Ring-retaining, shaft
|
1332434 |
— | ||
|
11
|
11
1350047 Grease-50g btb |
1350047 |
US $15.26 |
||
|
12
|
12
1350085
Ring
|
1350085 |
— |
